As digital communication becomes more immersive, indoor LED displays have become indispensable in retail, hospitality, corporate, and entertainment environments. Whether used for showcasing promotional content, delivering impactful presentations, or enhancing visitor experiences, choosing the right LED screen can make all the difference in clarity, engagement, and return on investment.
However, not all LED displays are created equal. When selecting the right indoor LED screen for your space, three core factors must guide your decision: resolution (pixel pitch), brightness, and viewing distance. In this guide, we break down what these terms mean, how they affect visual performance, and how to apply them to real-world scenarios.

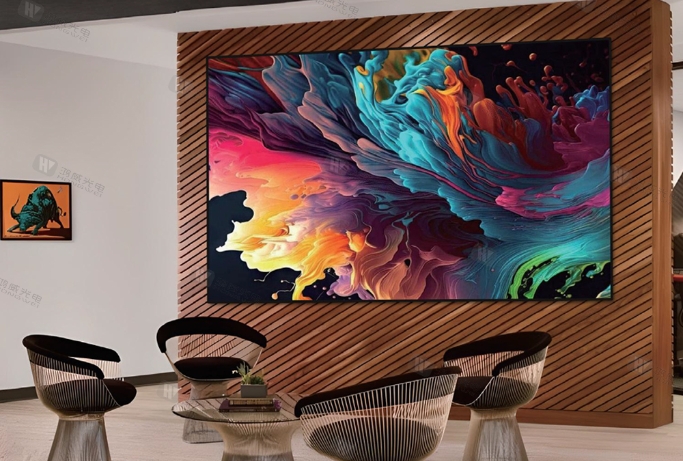

An indoor LED display is a modular screen system made up of LED panels, designed specifically for indoor use. These displays are known for their high brightness, seamless assembly, and ability to show dynamic video and images with excellent color uniformity.
Unlike outdoor LED screens, indoor models don’t require high waterproofing or extreme brightness. Instead, they focus on image sharpness, color consistency, and close-range visibility. Applications range from advertising screens in shopping malls, church LED backdrops, conference room LED displays, to control room LED video walls.
When we talk about resolution in LED displays, the most important specification is pixel pitch. Pixel pitch refers to the distance (in millimeters) between the centers of two adjacent pixels. A smaller pixel pitch means a higher pixel density, which results in finer image detail.
P1.2 to P2.0 (fine pitch) is ideal for short viewing distances, such as conference rooms or retail counters.
P2.5 to P3.9 works well in environments like exhibition halls or shopping centers, where viewers are a few meters away.

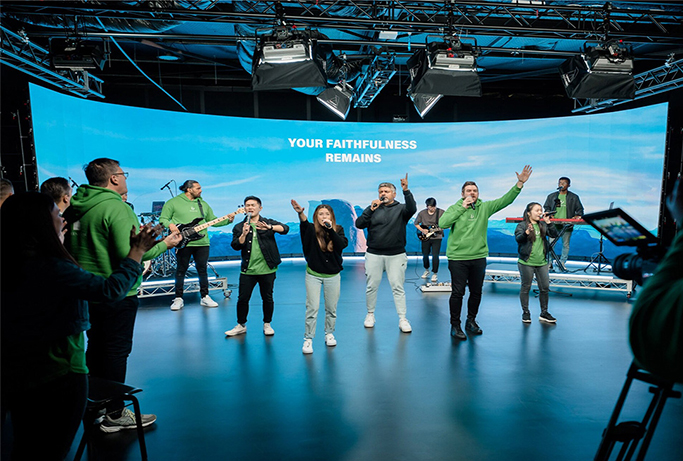

P4 and above is suitable for larger screens viewed from a distance, such as in churches or auditoriums.
A P2.0 LED display has pixels 2mm apart. That means a 2m-wide screen offers roughly 1,000 pixels in width, making it ideal for showcasing video content up close without visible pixelation.
Tip: Don't overpay for ultra-fine pitch unless it's truly needed. The finer the pitch, the higher the cost.
Brightness in LED displays is measured in nits (cd/m²). It determines how well your content is visible under various lighting conditions.
800–1,200 nits is sufficient for most indoor uses.
1,500+ nits may be required in high ambient light areas (e.g., near large glass walls or in atriums).
Unlike TVs or LCD monitors, LED displays emit their own light and can reach much higher brightness levels. However, too much brightness indoors can cause eye strain, and unnecessary energy consumption.
Most high-quality LED displays offer auto brightness adjustment, which helps optimize visibility while minimizing power use. This feature becomes especially important in multipurpose venues where lighting conditions change throughout the day.
Another critical factor is the minimum and optimal viewing distance — the distance at which the screen appears sharp and pixel-free to the viewer.
Minimum viewing distance (in meters) ≈ pixel pitch (in mm) × 1.5–2
Examples:
P1.5 screen: Ideal viewing distance ≈ 2.5–3 meters
P3.0 screen: Ideal viewing distance ≈ 4.5–6 meters
Choosing the wrong combination of pixel pitch and viewing distance can result in:
Visible pixelation (if pitch is too large for close-up viewing)
Unnecessary cost (if pitch is too fine for distant viewing)
Screen size also plays a role. A large venue requires a proportionally larger screen for proper legibility, which should be paired with a suitable pixel pitch.
While resolution, brightness, and viewing distance are the core considerations, a few more technical aspects are worth mentioning when choosing an indoor LED display:
a) Refresh Rate
Measured in Hz, it determines how smoothly motion is displayed. A minimum of 1920Hz is recommended for indoor LED displays used for video content or in camera-recorded environments to prevent flickering.
b) Color and Contrast
Look for displays with high contrast ratio and grayscale performance, especially in environments where brand visuals or video playback quality is critical.
c) Cabinet Design and Installation
Seamless assembly: Cabinets should lock together without visible gaps.
Front maintenance options: A front maintenance LED display allows quick access to modules and power supplies from the front, ideal for wall-mounted or space-limited installations.
d) Energy Efficiency
Lower power consumption not only saves costs but reduces heat, leading to longer lifespan and better stability.
Let’s look at how these considerations play out in real-life applications:
Recommended Pixel Pitch: P1.5–P2.5
Brightness: 1,000–1,200 nits (higher if near glass)
Special Note: Use vibrant content to attract passersby; color uniformity is critical.
Recommended Pixel Pitch: P2.5–P4.0
Viewing Distance: Typically over 10 meters
Special Note: High brightness and wide viewing angle needed for visibility from different angles.

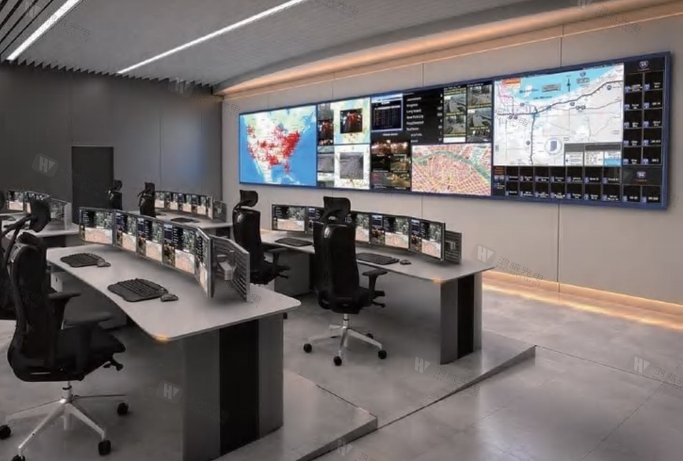

Recommended Pixel Pitch: P1.2–P1.9
Surface Uniformity: Must be seamless and flicker-free for long viewing durations
Recommended Pixel Pitch: P1.5–P2.0
Brightness: Moderate (800–1,000 nits)
Special Note: Aesthetic and clarity are key, especially for brand image or client-facing presentations.
Selecting the right indoor LED display is about more than just choosing the sharpest screen. You must consider the balance between resolution (pixel pitch), brightness, and viewing distance, aligned with your specific use case and environment.
By understanding how these core elements work together, you can avoid overspending, ensure optimal image quality, and create engaging visual experiences for your audience.
At Hongwei LED, we specialize in providing tailored indoor LED display solutions that match your space, content needs, and budget. Whether you're outfitting a retail space, control center, or event venue, our expert team helps you navigate pixel pitch, screen size, and installation options to deliver exceptional performance and long-term reliability.
