Front service wall mounting LED display
Product Feature
1. Pixel spacing is adjustable
Various pixel pitch, Pixel pitch available from P2.5, P3, P4, P5, P6, P8 to P10

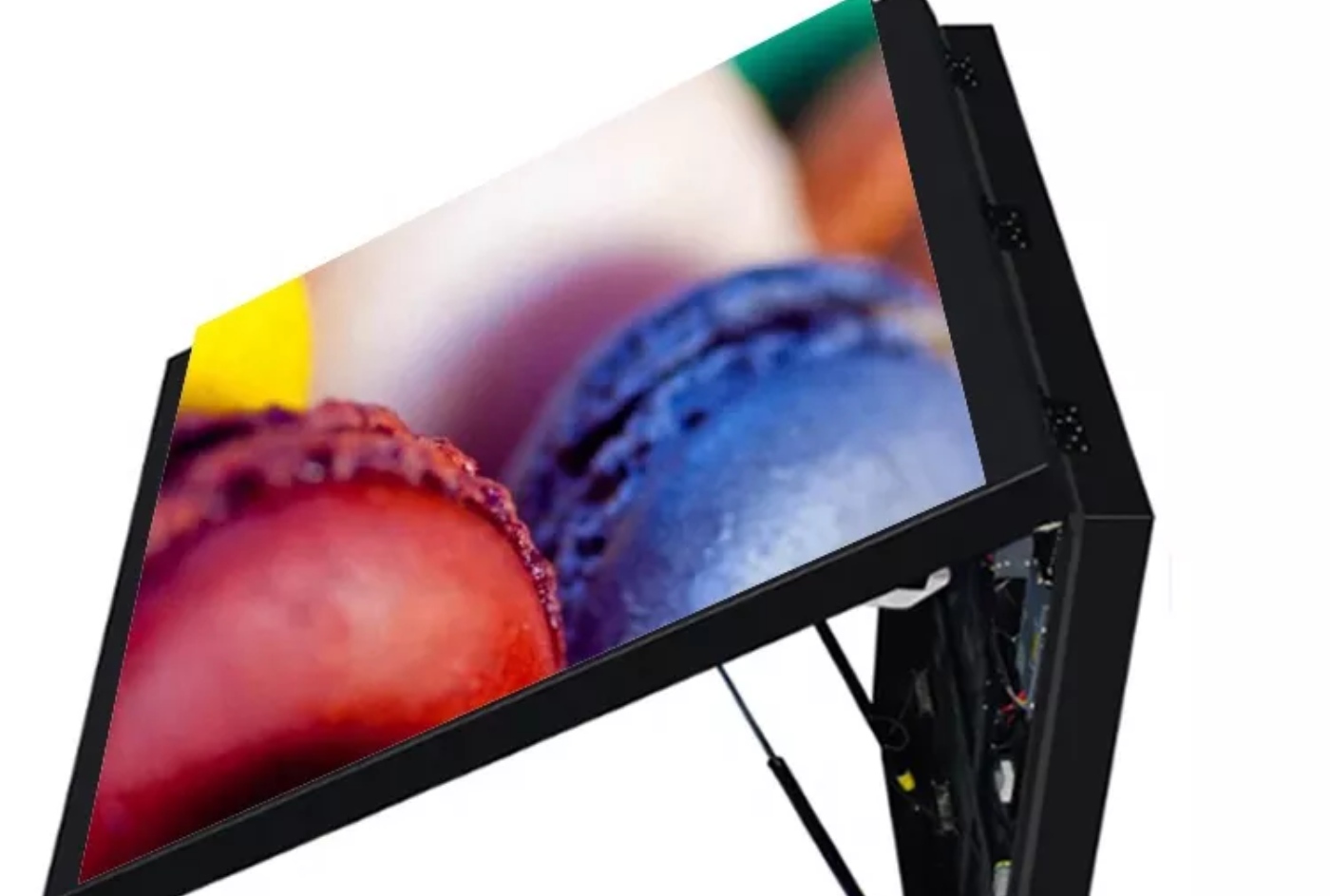

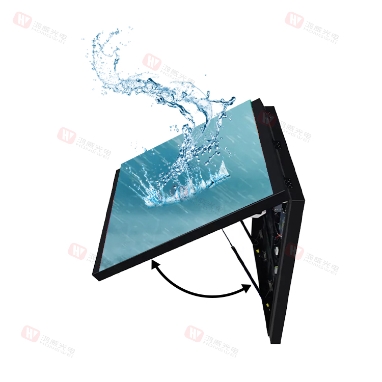

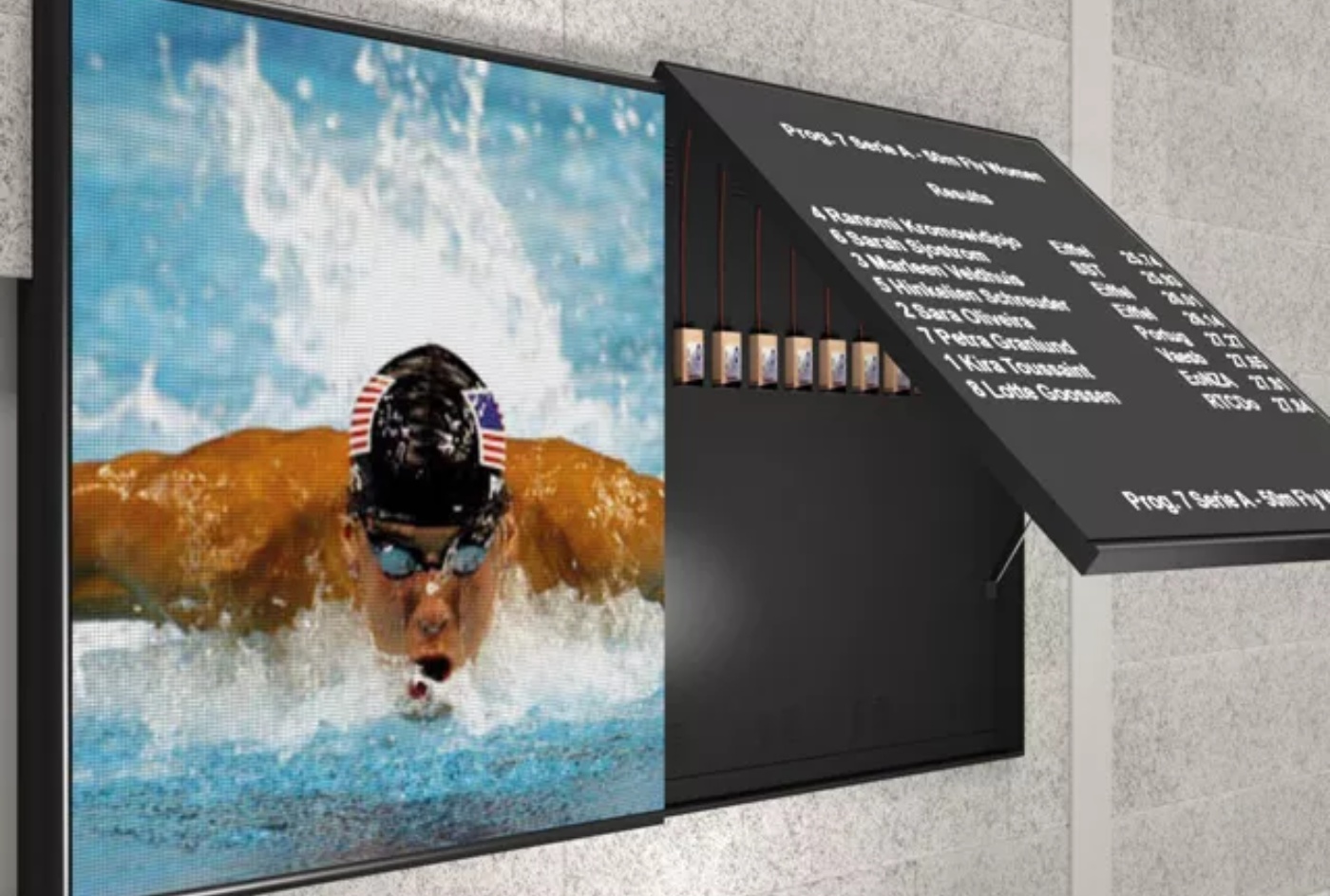

2. IP65 waterproof rating front service design
Front maintenance waterproof design, IP65 waterproof rating, can be opened from the front of the box for maintenance;
Installation is not limited by space.
3. Different design

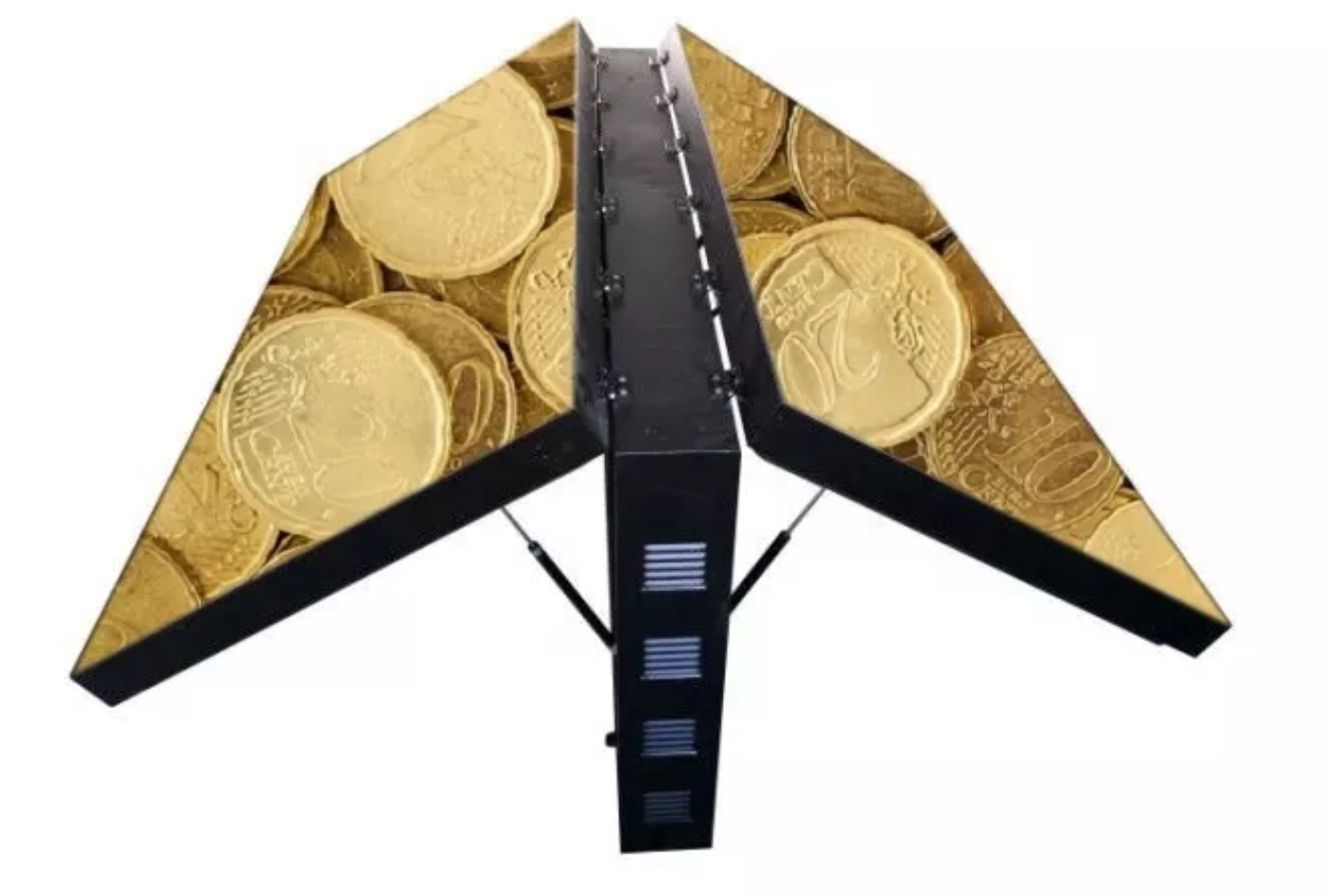

There will be single side and double-sided for options.
Both can be used for different installation like wall mounted, pole support...
4. Multiple functions
Can show temperature, brightness, humidity; Automatically brighness adjustment.
Various pixel pitch, Pixel pitch available from P2.5, P3, P4, P5, P6, P8 to P10
2. IP65 waterproof rating front service design
Front maintenance waterproof design, IP65 waterproof rating, can be opened from the front of the box for maintenance;
Installation is not limited by space.
3. Different design
There will be single side and double-sided for options.
Both can be used for different installation like wall mounted, pole support...
4. Multiple functions
Can show temperature, brightness, humidity; Automatically brighness adjustment.
Installation mode

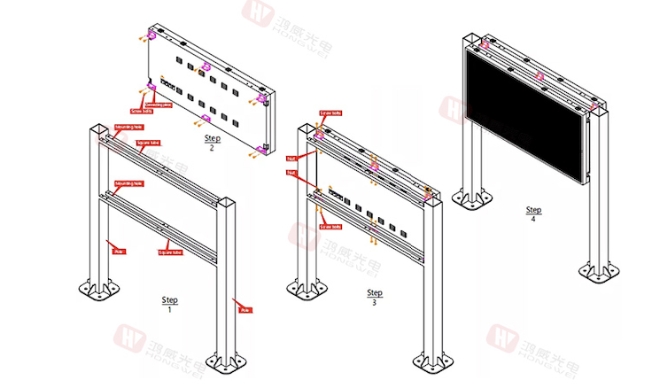

1. Mounting Between Two Poles:

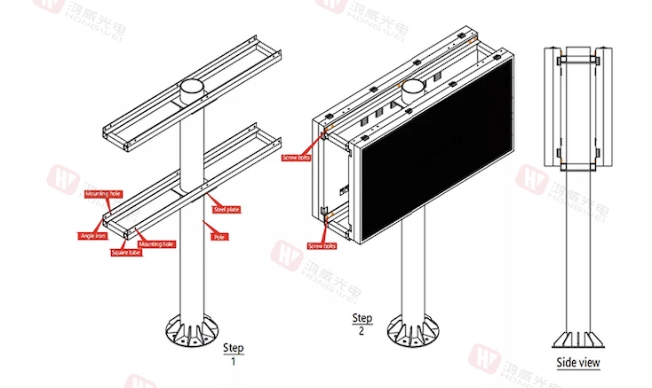

2. Single Pole Mounting:

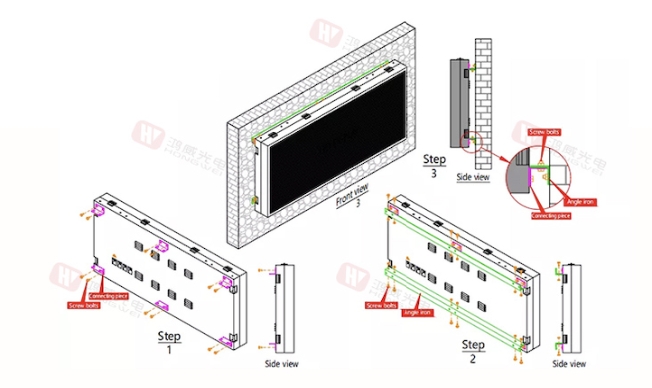

3. Wall Mounting:
Product Specification
P6 front service open cabinet LED display
| Pixel pitch | 6mm |
| Led type | SMD3535 |
| Usage | Outdoor |
| Protection class | IP65 |
| Brightness | >5500nits |
| Led panel material | Front open iron cabinet |
| Led panel size | Customized |
| Pixel density | 27777 dot/m2 |
| Weight | 40 kgs/sqm |
| Power supply | 110/220v-50/60Hz |
P8 front service open cabinet LED display
| Pixel pitch | 8mm |
| Led type | SMD3535 |
| Usage | Outdoor |
| Protection class | IP65 |
| Brightness | >5500nits |
| Led panel material | Front open iron cabinet |
| Led panel size | Customized |
| Pixel density | 15625 dot/m2 |
| Weight | 40 kgs/sqm |
| Power supply | 110/220v-50/60Hz |
P10 front service open cabinet LED display
| Pixel pitch | 10mm |
| Led type | SMD3535 |
| Usage | Outdoor |
| Protection class | IP65 |
| Brightness | >6000nits |
| Led panel material | Front open iron cabinet |
| Led panel size | Customized |
| Pixel density | 10000 dot/m2 |
| Weight | 40 kgs/sqm |
| Power supply | 110/220v-50/60Hz |
Technical Specification
| Led lifetime | 100000 hours |
| Viewing angle | 140 ° / 140 °. Extended angle that improves viewing of images from the side |
| Working temperature and humidity | -30°C / 50°C 10%～95% |
| Refresh rate | 3840Hz |
| Control system | Novasater/Colorlight/Linsn |
| Video signal input | HDMI, DVI, VGA… |
| Grayscale | 14-16 bit |
| Brightness control | Programmable |
- PROGRAMMABLE ON AND OFF
- DURABLE FOR FIXED INSTALLATION
- SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...
Product Application

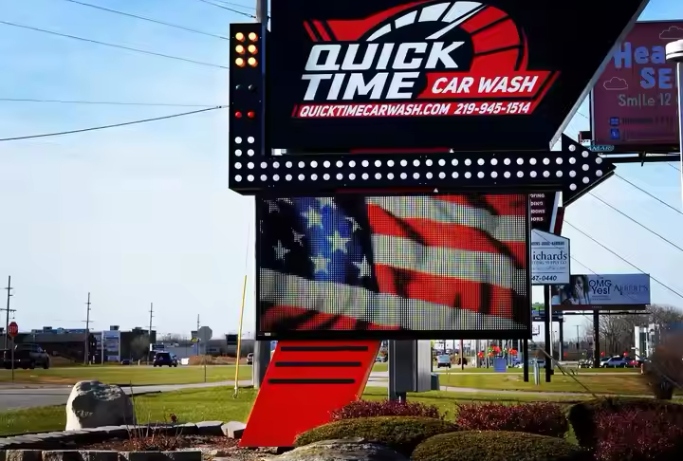

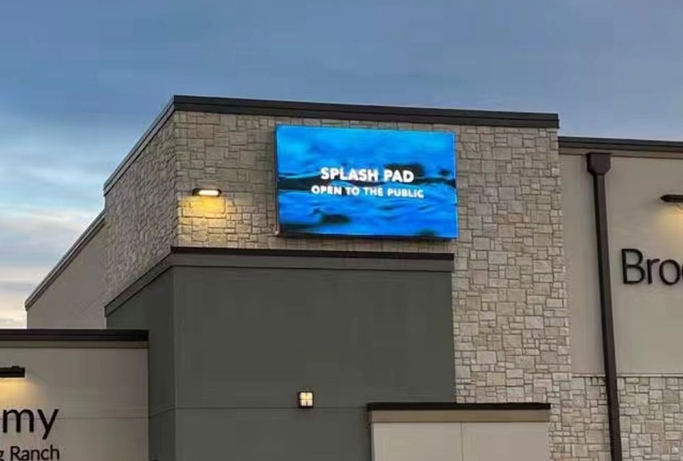

Front service outdoor LED display for advertising
Front service outdoor LED advertising display

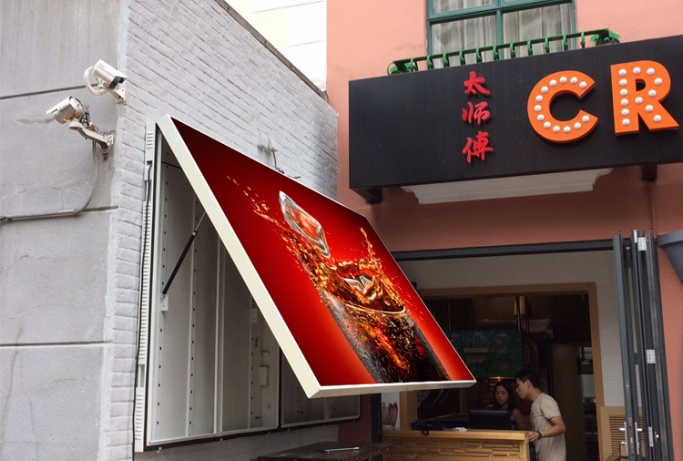

Front maintenance LED advertising display
