Product Feature
- Turnkey complete led video wall system
- Concave and convex setup support
- Perfect seamless stitching and fast installation
- Lightweight and slim thickness
- Front and back maintenance
More details

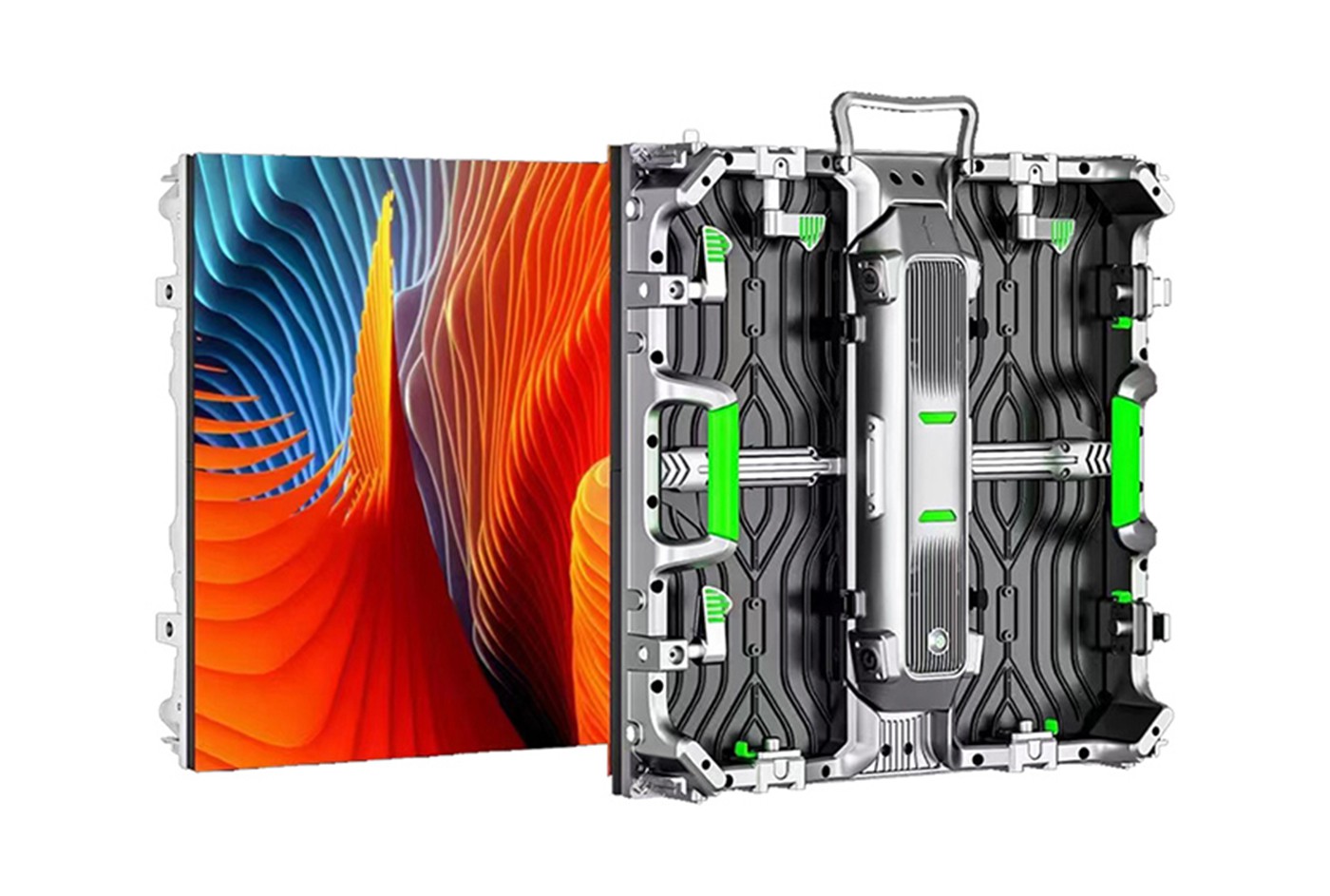

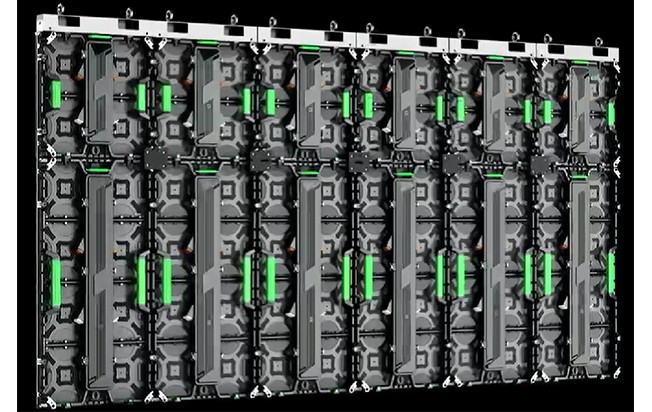

Complete Solution Led Video Wall System
Including led panels, power supply, control system, hanging beam, flight case and all accessories.

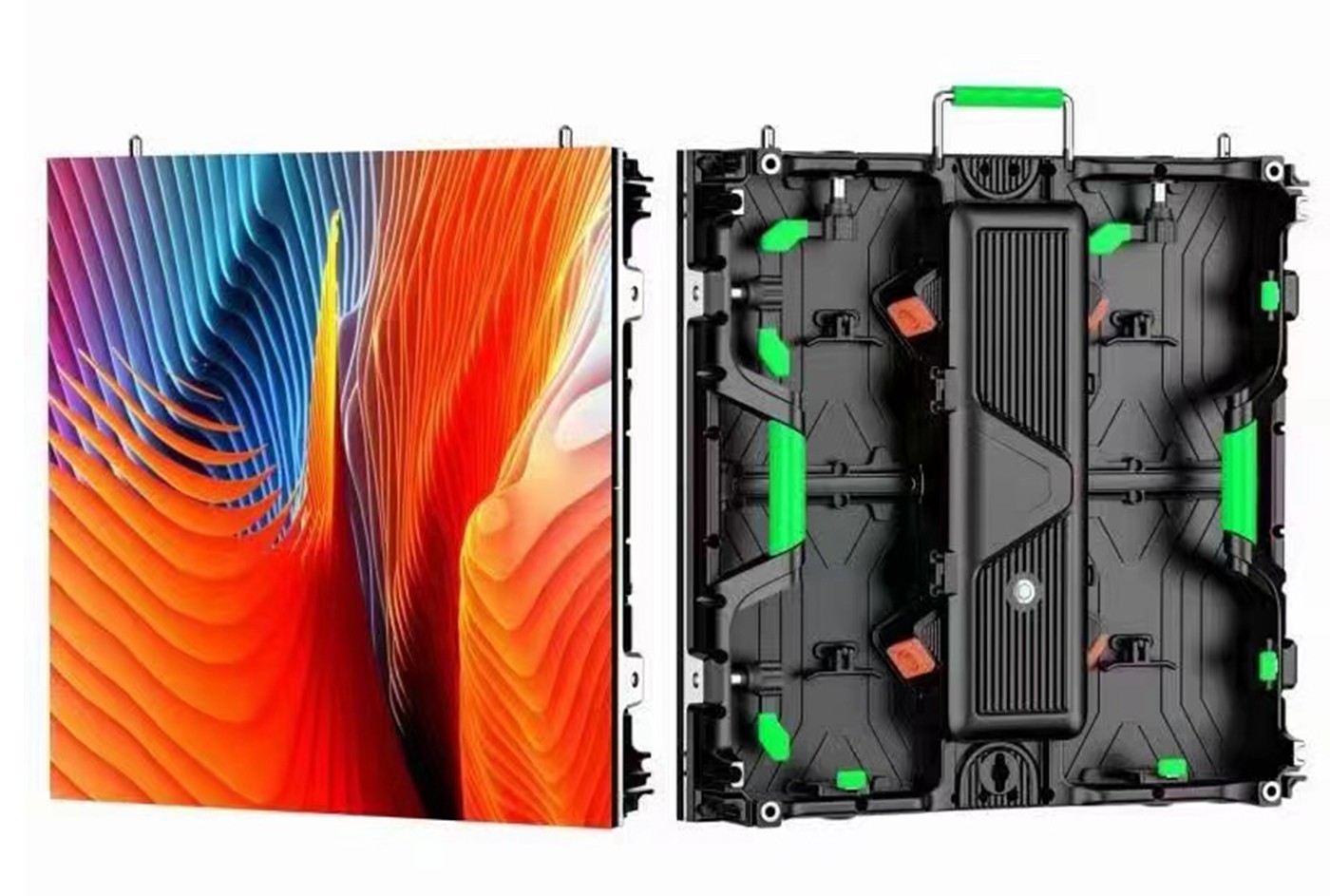

Perfect Seamless Stitching
The side locks are used to tighten up the cabinets while installing, to reduce the gaps between cabinets. It is good to present the seamless screen.
Module corner
Corner protection designis avoiding any hits for modules' corner,100% protect LEDs.

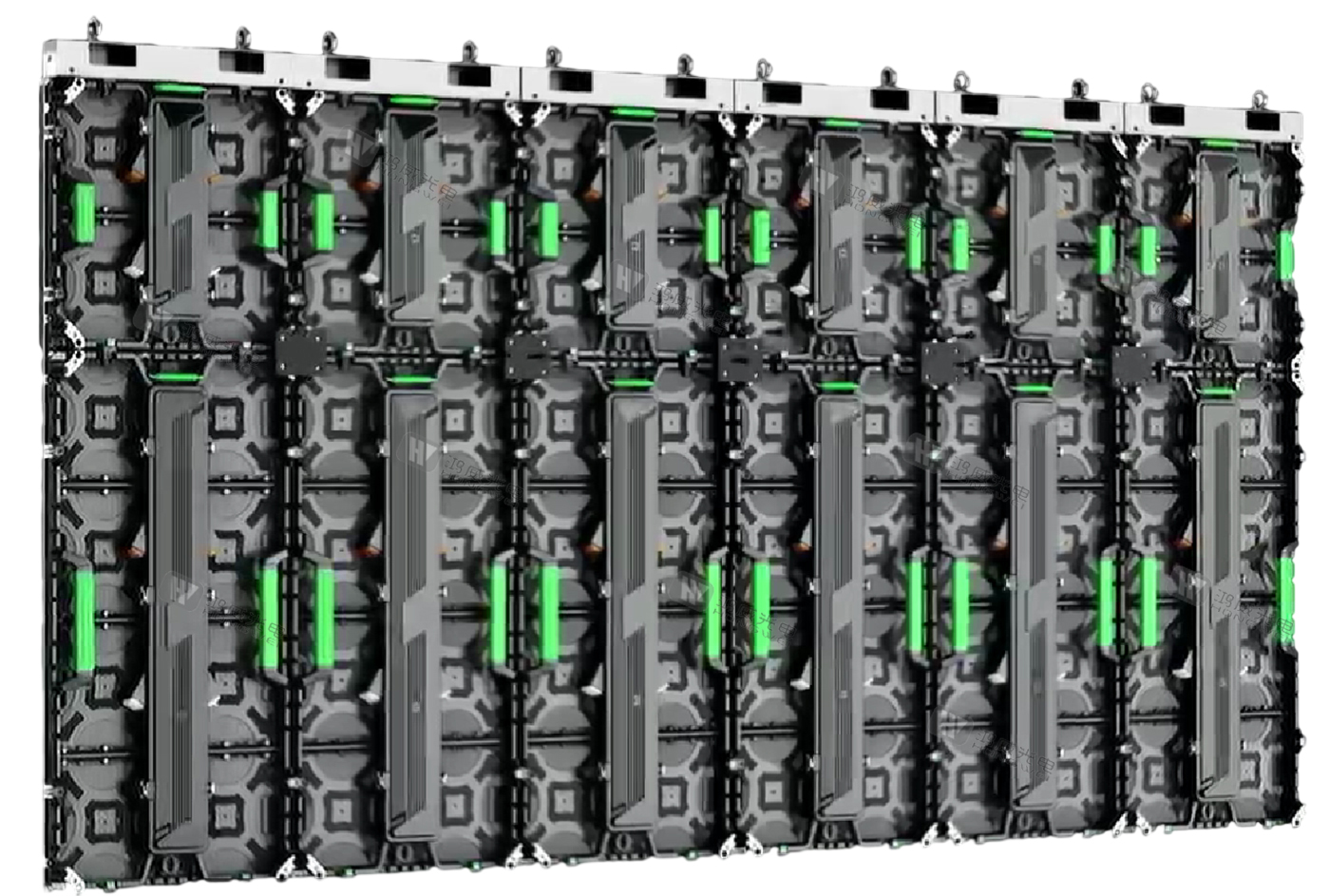

Support Concave and Convex Setup
Can do concave and convex installaiton, also can do a circle.
We can help you to design and customize your own led display, we work with professional engineers who continuously develop new products, constantly solve the pain points of the market and industry of led display.
One stop led video wall solutions: We provide complete led video wall proposal, including led panels, power
supply, control system, hanging beam, flight case, installation frame and other accessories.
Knowing that our products and your needs is the most important thing, suitable proposal can save so many times and cost.
24 hours online pre-sale and after-sales customer service, no time difference

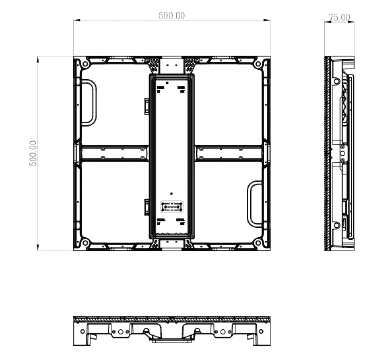

Product Size
Product Specification
Indoor LED Video Wall
| Pixel pitch | 2.604mm |
| Led type | SMD1515 |
| Usage | Indoor |
| Protection class | IP33 |
| Brightness | 800nits |
| Led panel material | Die casting aluminum |
| Led panel size | 500 x 500mm /500 x 1000mm |
| Weight | 6.4 / 12.5kgs |
| Power consumption | 800W/250W per square meter |
Outdoor LED Video Wall
| Pixel pitch | 2.604mm |
| Led type | SMD1515 |
| Usage | Outdoor |
| Protection class | IP65 |
| Brightness | 5000nits |
| Led panel material | Die casting aluminum |
| Led panel size | 500 x 500mm /500 x 1000mm |
| Weight | 6.8 / 12.8kgs |
| Power supply | 110/220v-50/60Hz |
| Power consumption | 800W/250W per square meter |
Technical Specification
| Led lifetime | 100000 hours |
| Viewing angle | 140 ° / 140 °. Extended angle that improves viewing of images from the side |
| Working temperature and humidity | -30°C / 55°C 10%～95% |
| Refresh rate | 1920-3840Hz |
| Pixel density | 147456 dot/m2 |
| Control system | Novasater/Colorlight/Linsn |
| Video signal input | HDMI, DVI, VGA… |
| Grayscale | 14-16 bit |
| Brightness control | Programmable |
- PROGRAMMABLE ON AND OFF
- FAST AND EASY INSTALLATION
- SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...
Product Application

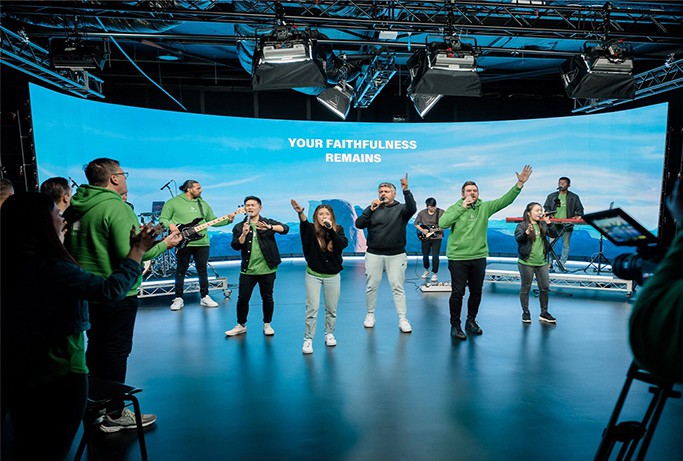

Public Event, Conference...

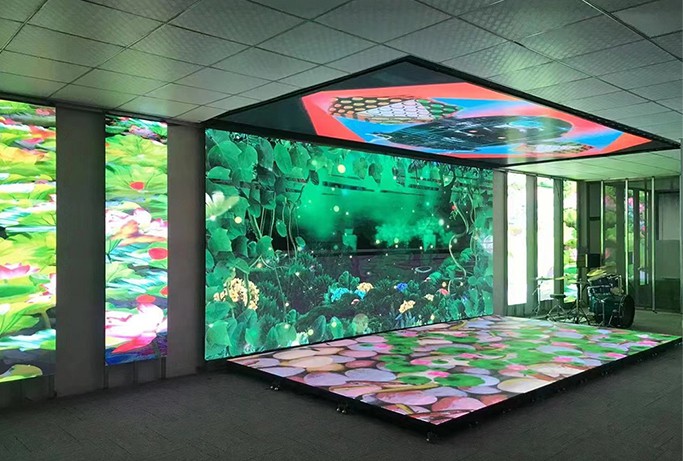

Wall mounted, floor led, ceiling...

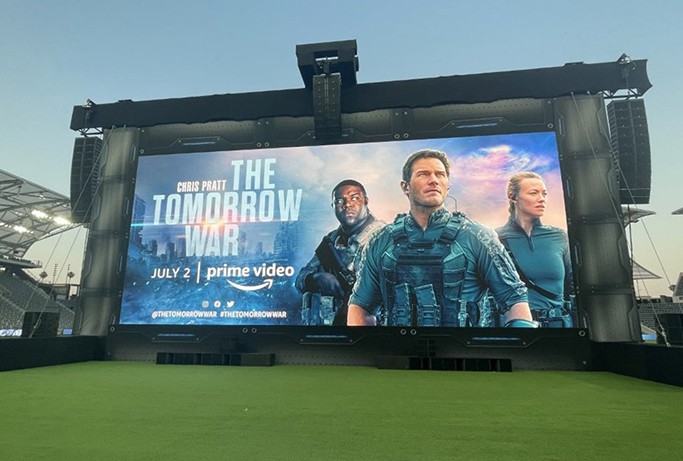

Outdoor event background advertising...

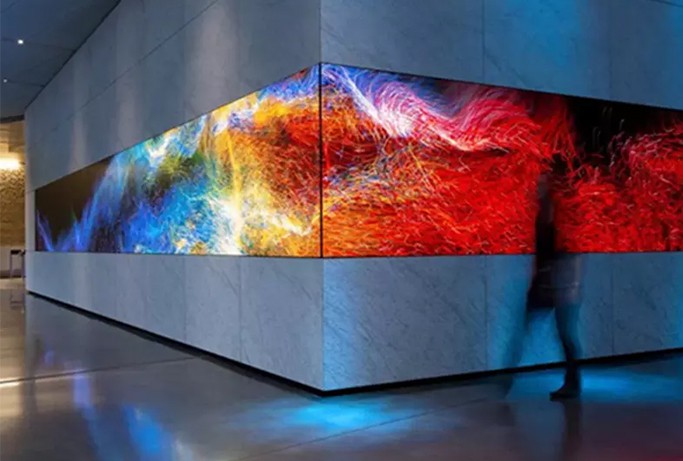

90 degree corner, can do 3D led display
Frequently Asked Questions About Flexible LED Screens
Find answers to frequently asked questions about flexible LED screens. Learn how flexible LED displays create unique curved, creative, and immersive visual experiences.
What is the minimum bending radius of a flexible LED screen?
Our flexible LED modules (typically sized 240x120mm or 320x160mm) utilize a high-elongation silicone or rubber mask paired with a flexible multi-layer PCB. This allows for a minimum bending radius of 150mm for both concave and convex curves without risking micro-fractures in the copper traces.
How are flexible LED panels mounted, and is the installation complicated?
The installation process is exceptionally straightforward because Hongwei provides a complete, ready-to-install solution. Before shipment, our engineering team supplies you with customized CAD structural blueprints and power/data wiring diagrams to your specific project. Your local team simply prepares the structure according to our exact drawings, then fix the flexible LED screen to the frame, power it on, and the screen is ready to use (Plug-and-Play). We handle all the complex engineering upfront, so your on-site execution is seamless.
Can I use a flexible LED screen in a nightclub environment?
Yes. Flexible screens are ideal for nightclubs due to their vibration-resistant rubber chassis and creative versatility. You can mold them into 3D DJ booths, undulating ceiling waves, or circular column wraps to create a fully immersive atmosphere. We configure these screens with a ≥7,680Hz high refresh rate, ensuring flicker-free visuals on smartphone cameras for social media sharing. They combine structural durability with high-impact architectural design.
Does Hongwei offer OEM/ODM services for flexible LED screens?
Yes. Hongwei provide end-to-end OEM/ODM services, including customized module sizes, bespoke structural shapes, and private-label internal components to align with your specific project and brand requirements.
What pixel pitch is best for a pillar-wrapping flexible LED screen?
It depends on the diameter and viewing distance. For standard indoor pillars with a viewing distance of 2–4 meters, P1.86 or P2.0 is ideal for crisp, high-definition text and video. For larger architectural columns viewed from a distance (over 5 meters), a cost-effective P2.5 or P4.0 offers the perfect balance of visual clarity and budget optimization.
What is your warranty policy, and how do you ensure reliability for flexible screens?
Hongwei provide a comprehensive 2 to 5-year warranty along with free critical spare parts (including spare modules, power supplies, and driving ICs) shipped with every order. To guarantee zero transport and setup failure, every flexible screen undergoes a rigorous 48 to 72-hour continuous aging test at our factory before packing.
What is the MOQ for a customized flexible LED project?
We offer flexible purchasing options with a low MOQ starting from just 1 unit, allowing you to prototype or test your custom designs before scaling to mass production.
