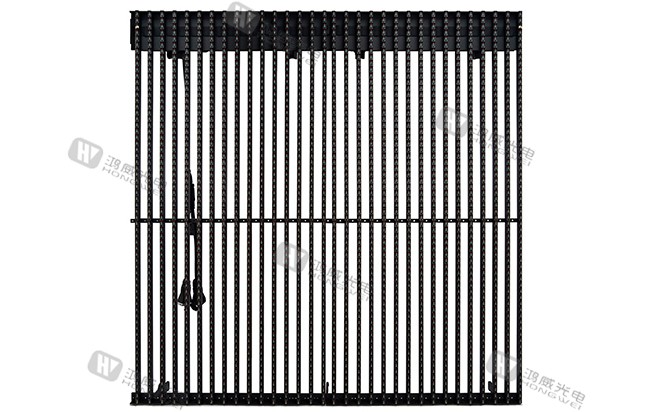

P15.6 P20 P25 P31 Led Mesh Outdoor Transparent Screen LED Media Facade

Product Feature

Low energy consumption: Max power comsumption is just 400W/sqm

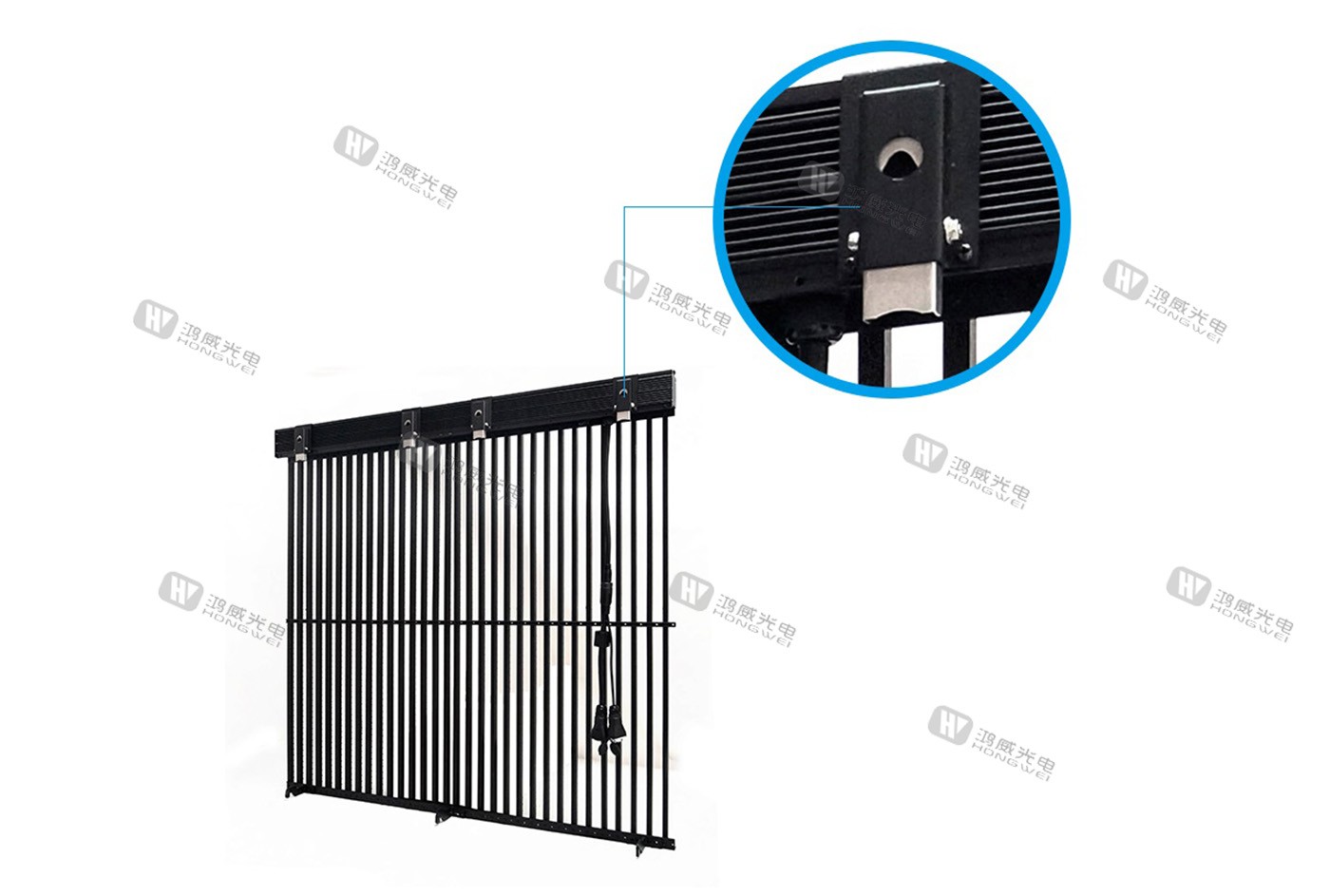

Aluminum cabinet with perfect seamless stitching and fast installation
6.5cm ultra slim design
Transparency up to 68%, will not hide the view from outside
Brightness adjustable, brightness can be 6500-10000nits per your request.

More details

IP65 Waterproof

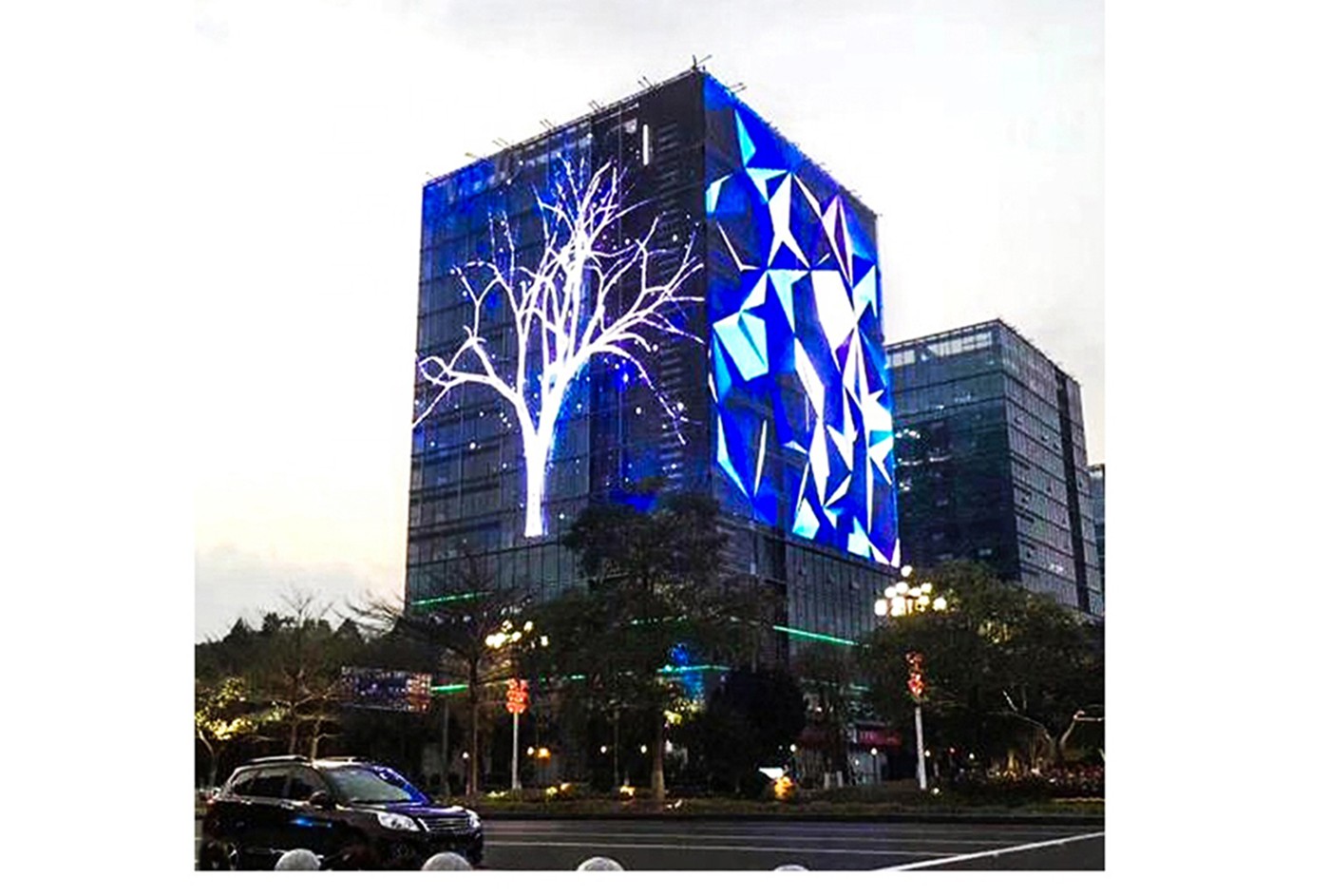

Glue filling, to make waterproof and dustproof, can be installed outside of buliding.

Especially Used For High Temparture Enviroment

-30 to + 50 degrees, be cable to operate both at very cold and hot environment, excellent for Russia and Middle East.

Thin And Light Version

Light: 15kgs/sqm; Thin: 6.5cm thickness

Fanless design, No Noise But With Good Heat Dissipation

Low energy consumption: Max power comsumption is just 400W/sqm

We can help you to design and customize your own led display, we work with professional engineers who continuously develop new products, constantly solve the pain points of the market and industry of led display.

One stop led video wall solutions: We provide complete led video wall proposal, including led panels, power
supply, control system, hanging beam, flight case, installation frame and other accessories.

Knowing that our products and your needs is the most important thing, suitable proposal can save so many times and cost.
24 hours online pre-sale and after-sales customer service, no time difference

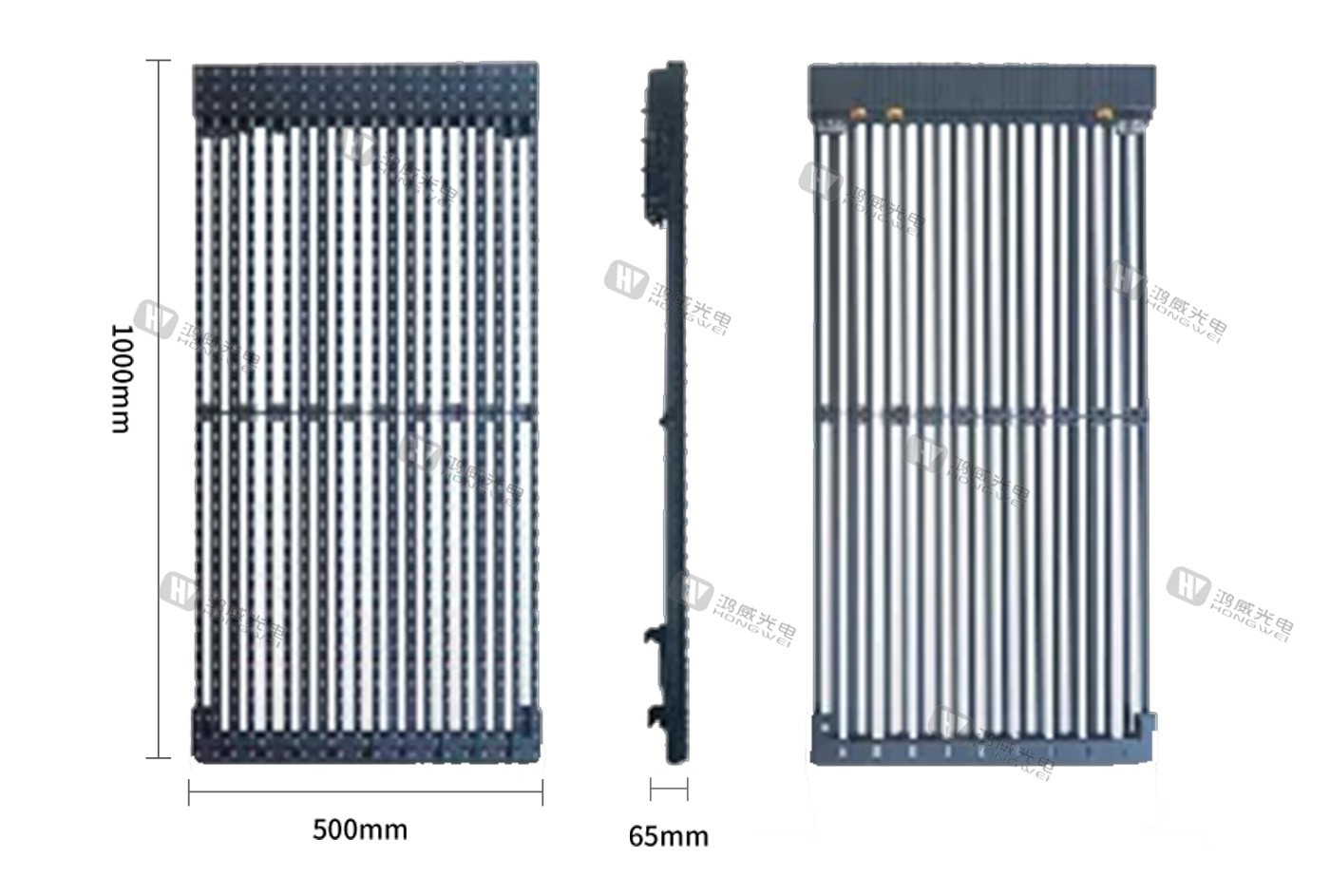

Product Size

Product Specification

31-31mm Outdoor Led Media Facade

Pixel pitch	31-31mm
Led type	DIP346 (1R1G1B)
Usage	Outdoor
Best View Distance	Over 30 meters
Pixel density	1024dots/sqm
Brightness	6500nits~10000nits, can be customzied per your request
Led panel material	Aluminum
Led panel size	500 x 1000mm
Weight	7.5kgs
Power supply	110/220v-50/60Hz
Power consumption	400W/140W per square meters

25-25mm Outdoor Led Media Facade

Pixel pitch	25-25mm
Led type	DIP346 (1R1G1B)
Usage	Outdoor
Best View Distance	Over 25 meters
Pixel density	1600dots/sqm
Brightness	6500nits~10000nits, can be customzied per your request
Led panel material	Aluminum
Led panel size	500 x 1000mm
Weight	7.5kgs
Power supply	110/220v-50/60Hz
Power consumption	400W/140W per square meters

Technical Specification

Led lifetime	100000 hours
Viewing angle	120 ° / 60 °. Extended angle that improves viewing of images from the side
Working temperature and humidity	-30°C / 55°C 10%～95%
Refresh rate	1920-3840Hz
Protection class	IP65
Transparency	up to 68%
Control system	Novasater/Colorlight/Linsn
Video signal input	HDMI, DVI, VGA…
Grayscale	14-16bit
Brightness control	Programmable
