Rear and front maintenance LED display
Product Feature

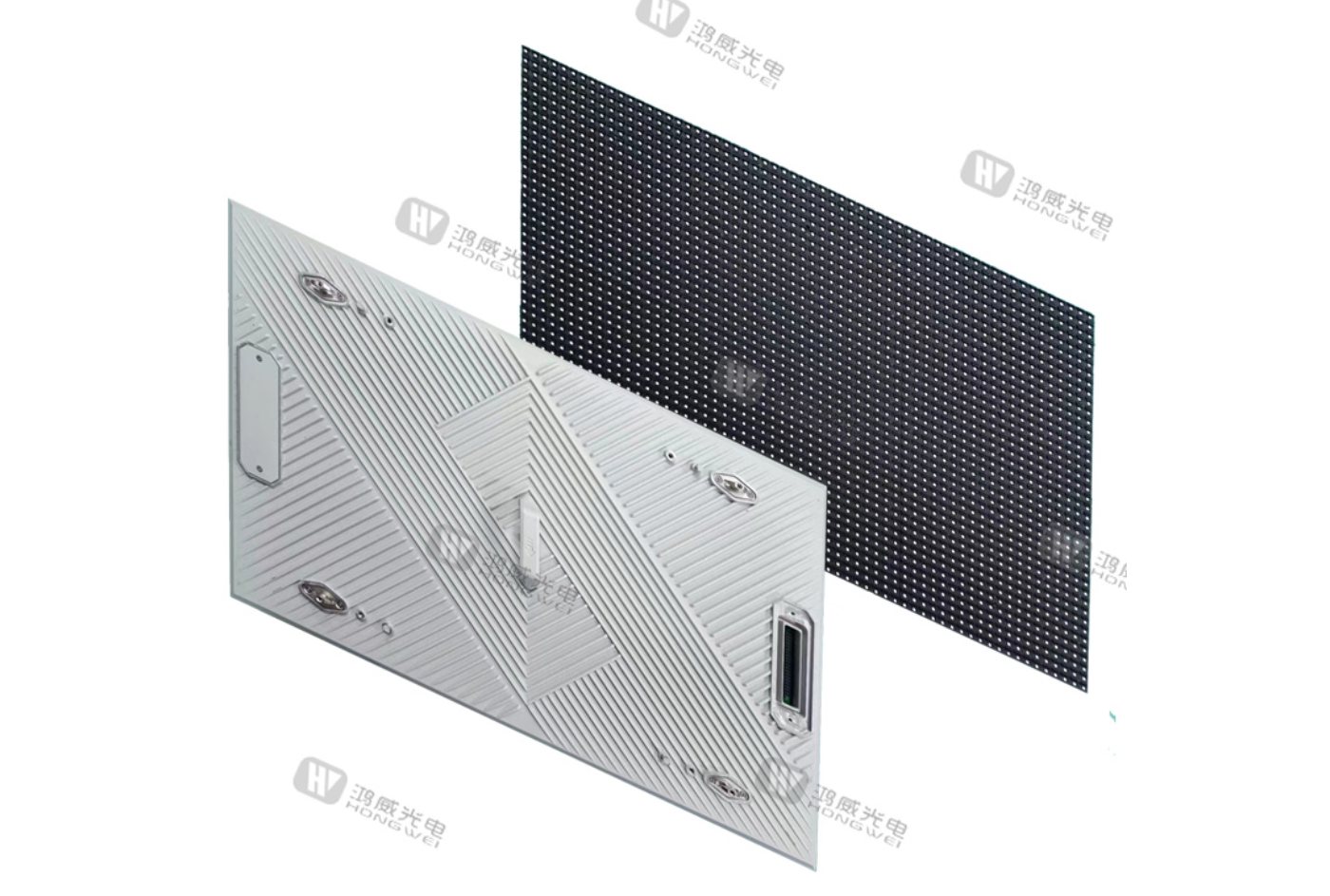

1. Aluminum cabinet and led module shell
Aluminum Profile cabinet, light weight with 26kgs for 960x960mm, Safe and reliable, not easily deformed: Led module with aluminum case which is flame-retardant and fire-resistant, and is not easy to deform under high temperature conditions.
2. Customized design
Support customized 90 degree screen or curved screen, the corner is more smooth when you make big 3D effect led display, ensure good visual effect.
3. Energy saving technology
Use the solution of separating the lamp of R, G and B colors, supply power separately, reducing power consumption. Low heat generation, high heat dissipation aluminum bottom shell, maximum energy saving rate limited to 75% while ensure high brightness and high contrast ratio are guaranteed.
4. Fast front and rear maintenance
Interchangeable module, easy to make replacement, the module is compatible in any position.
Aluminum Profile cabinet, light weight with 26kgs for 960x960mm, Safe and reliable, not easily deformed: Led module with aluminum case which is flame-retardant and fire-resistant, and is not easy to deform under high temperature conditions.
2. Customized design
Support customized 90 degree screen or curved screen, the corner is more smooth when you make big 3D effect led display, ensure good visual effect.
3. Energy saving technology
Use the solution of separating the lamp of R, G and B colors, supply power separately, reducing power consumption. Low heat generation, high heat dissipation aluminum bottom shell, maximum energy saving rate limited to 75% while ensure high brightness and high contrast ratio are guaranteed.
4. Fast front and rear maintenance
Interchangeable module, easy to make replacement, the module is compatible in any position.
More details

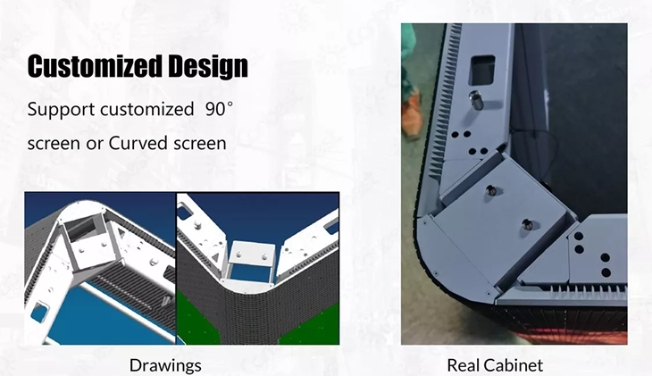

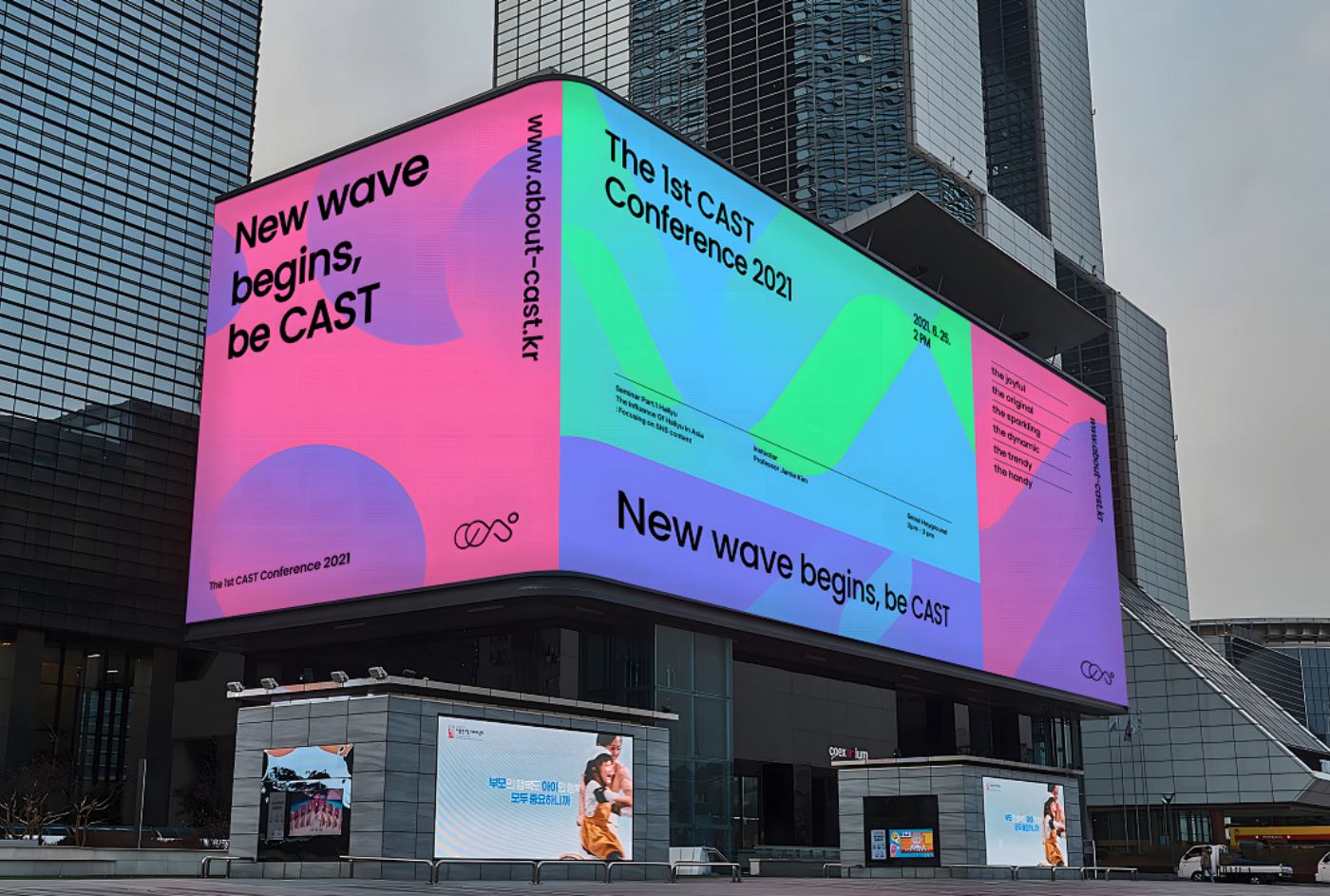

1. Customized Design:
Support customized 90° screen or Curved screen.

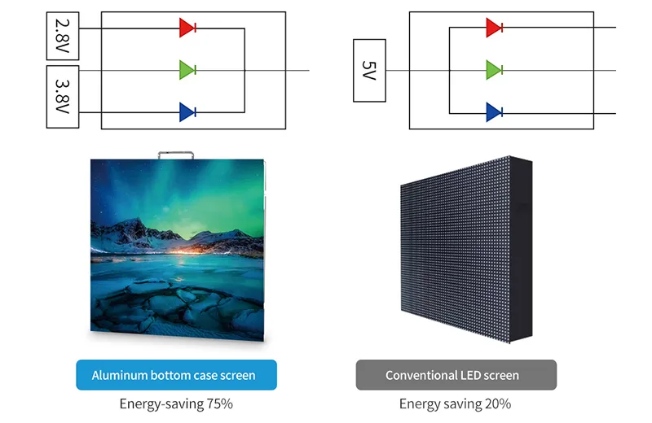

2. Common cathode energy saving technology:
The common cathode aluminum screen adopts the scheme of separating the lamp beads of R, G, and B colors, and gives them separately Power supply, effectively reducing power consumption, low heat generation, and high heat dissipation aluminum bottom shell. Naturally low heat, the maximum energy saving is limited to 75% while ensuring high brightness and high contrast.

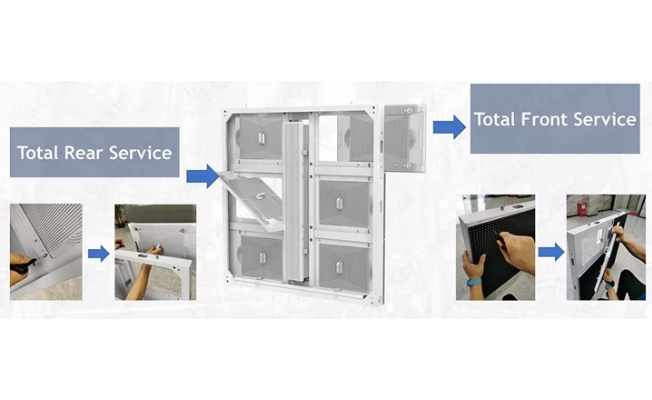

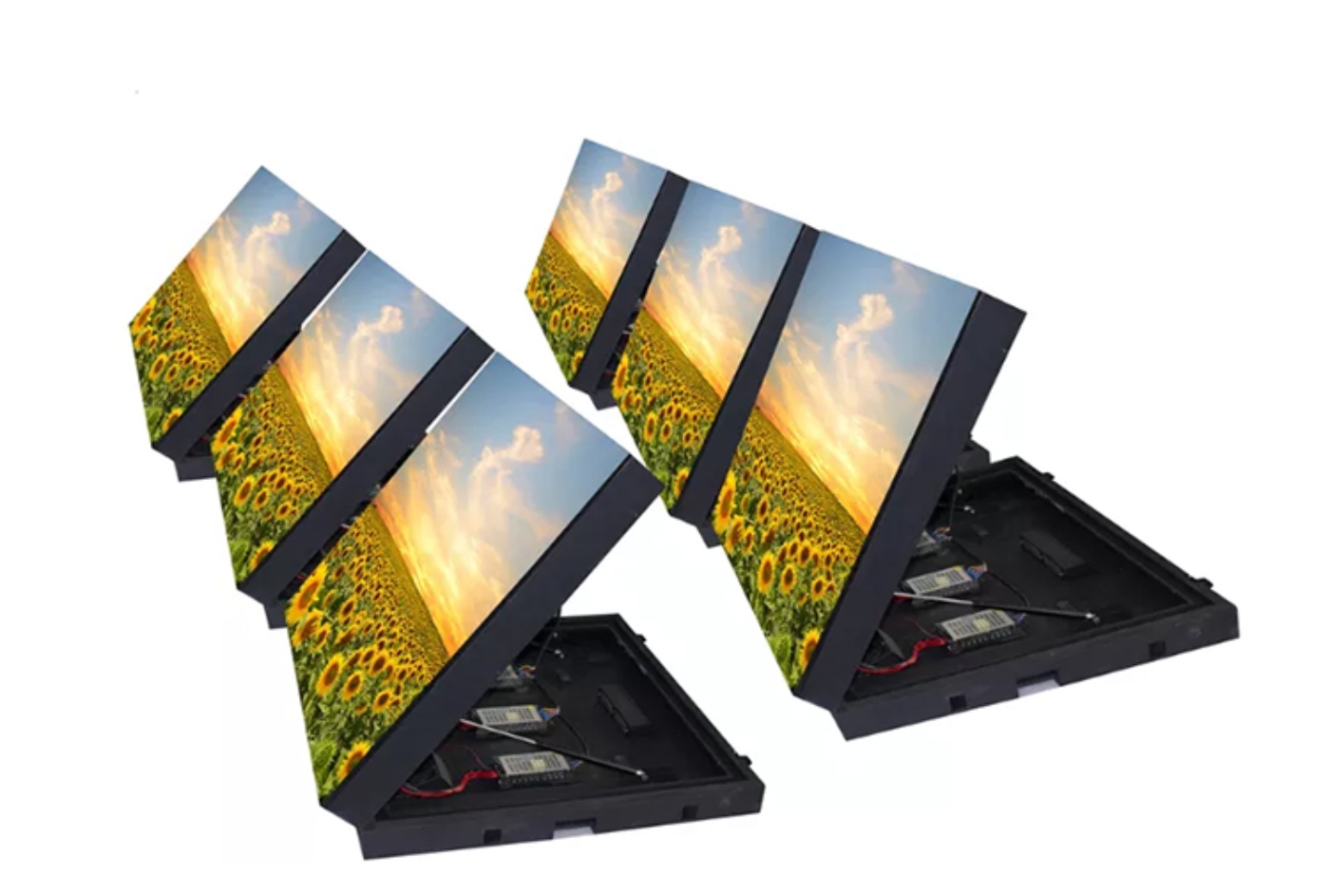

3. Front and rear maintenance possible:
Outdoor front and rear maintenance LED display screen, supports front and rear maintenance.

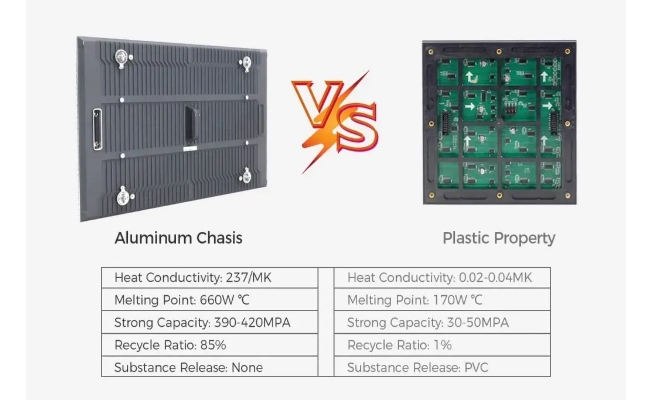

4. Modular aluminum bottom shell, fireproof:
Outdoor front and rear maintenance LED display screen, with modular aluminum bottom shell, fireproof.
Product Specification

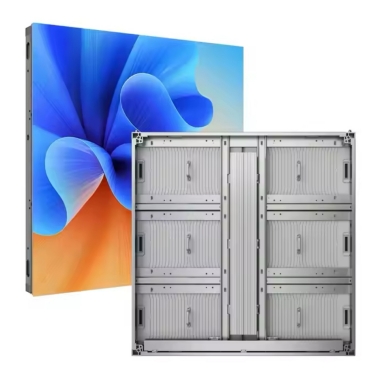

P4.4 Rear and Front Maintenance LED Display
| Pixel pitch | 4.4mm |
| Led type | SMD1415 |
| Usage | Outdoor |
| Protection class | IP67 |
| Brightness | 5500-8000nits |
| Led panel material | Aluminum cabinet |
| Led panel size | 960 x 960mm |
| Pixel density | 50625 dot/m2 |
| Weight | 26 kgs/sqm |
| Power supply | 110/220v-50/60Hz |
P5.7 Rear and Front Maintenance LED Display
| Pixel pitch | 5.7mm |
| Led type | SMD2727 |
| Usage | Outdoor |
| Protection class | IP67 |
| Brightness | 6000-8000nits |
| Led panel material | Aluminum cabinet |
| Led panel size | 960 x 960mm |
| Pixel density | 30625 dot/m2 |
| Weight | 26 kgs/sqm |
| Power supply | 110/220v-50/60Hz |

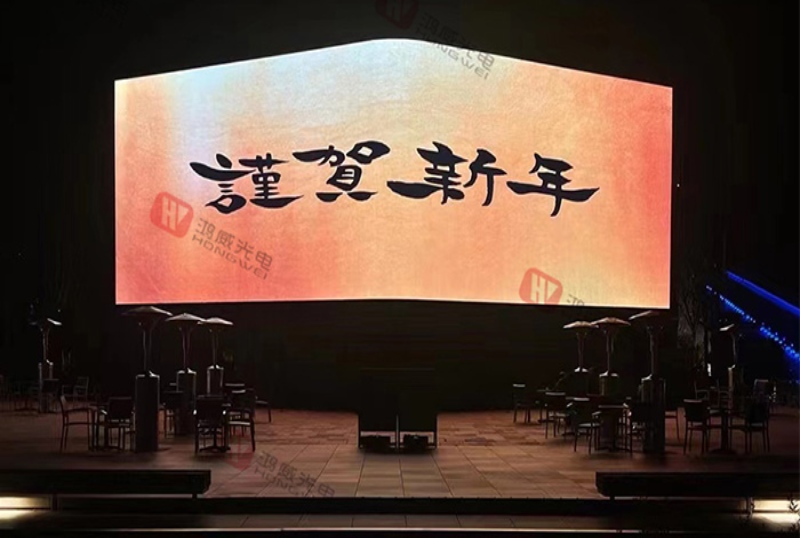

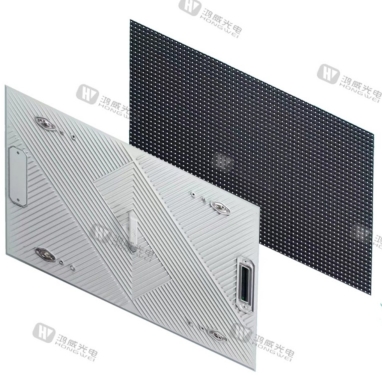

P6.67 Rear and Front Maintenance LED Display
| Pixel pitch | 6.67mm |
| Led type | SMD2727 |
| Usage | Outdoor |
| Protection class | IP67 |
| Brightness | 6500-10000nits |
| Led panel material | Aluminum cabinet |
| Led panel size | 960 x 960mm |
| Pixel density | 22500 dot/m2 |
| Weight | 26 kgs/sqm |
| Power supply | 110/220v-50/60Hz |
Technical Specification
| Led lifetime | 100000 hours |
| Viewing angle | 140 ° / 140 °. Extended angle that improves viewing of images from the side |
| Working temperature and humidity | -30°C / 50°C 10%～95% |
| Refresh rate | 3840Hz |
| Control system | Novasater/Colorlight/Linsn |
| Video signal input | HDMI, DVI, VGA… |
| Grayscale | 14-16 bit |
| Avg power consumption | 320 / m2 |
| Brightness control | Programmable |
- PROGRAMMABLE ON AND OFF
- DURABLE FOR FIXED INSTALLATION
- SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...
Product Application

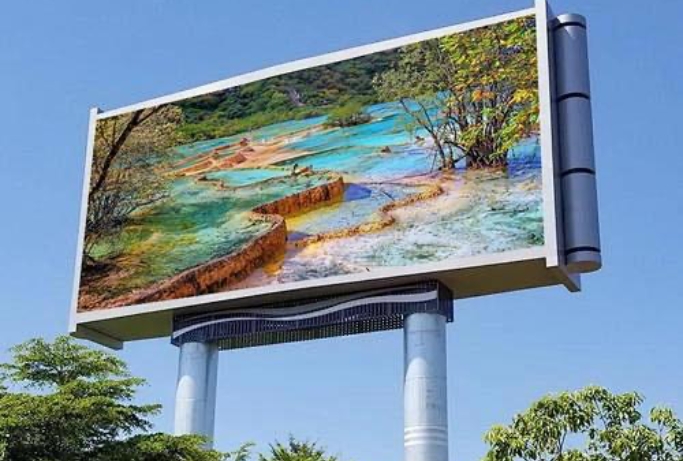

Waterproof aluminum profile LED display

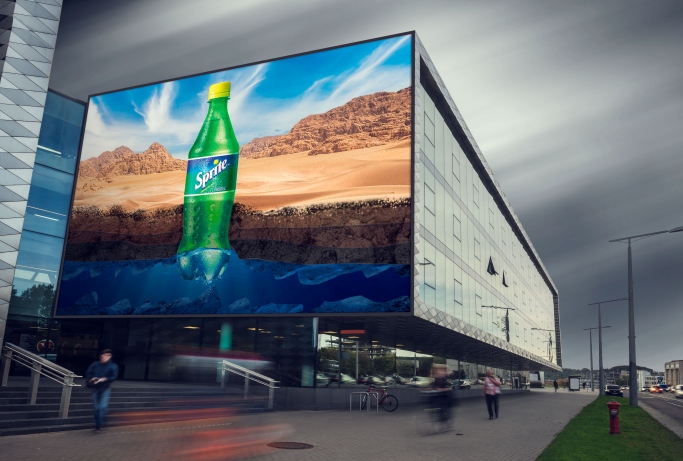

Outdoor front maintenance LED advertising display

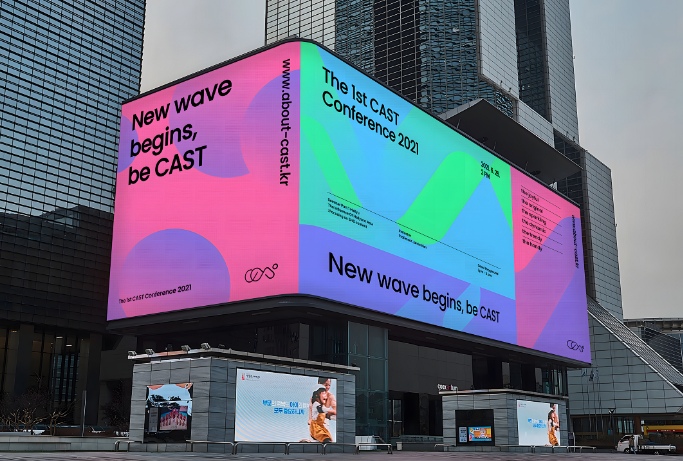

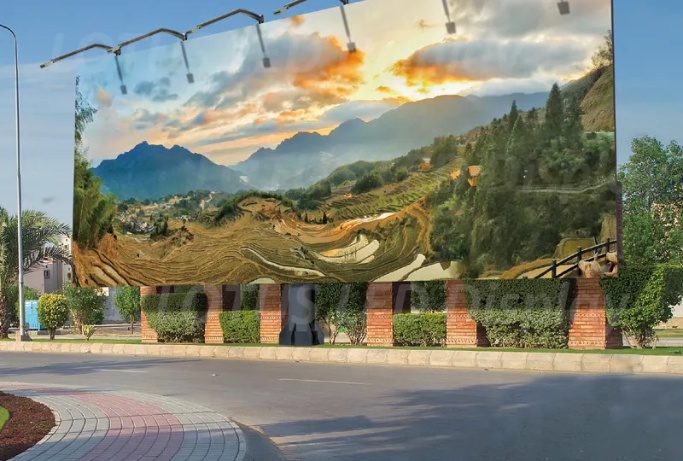

Waterproof aluminum rear and front maintenance LED screen
