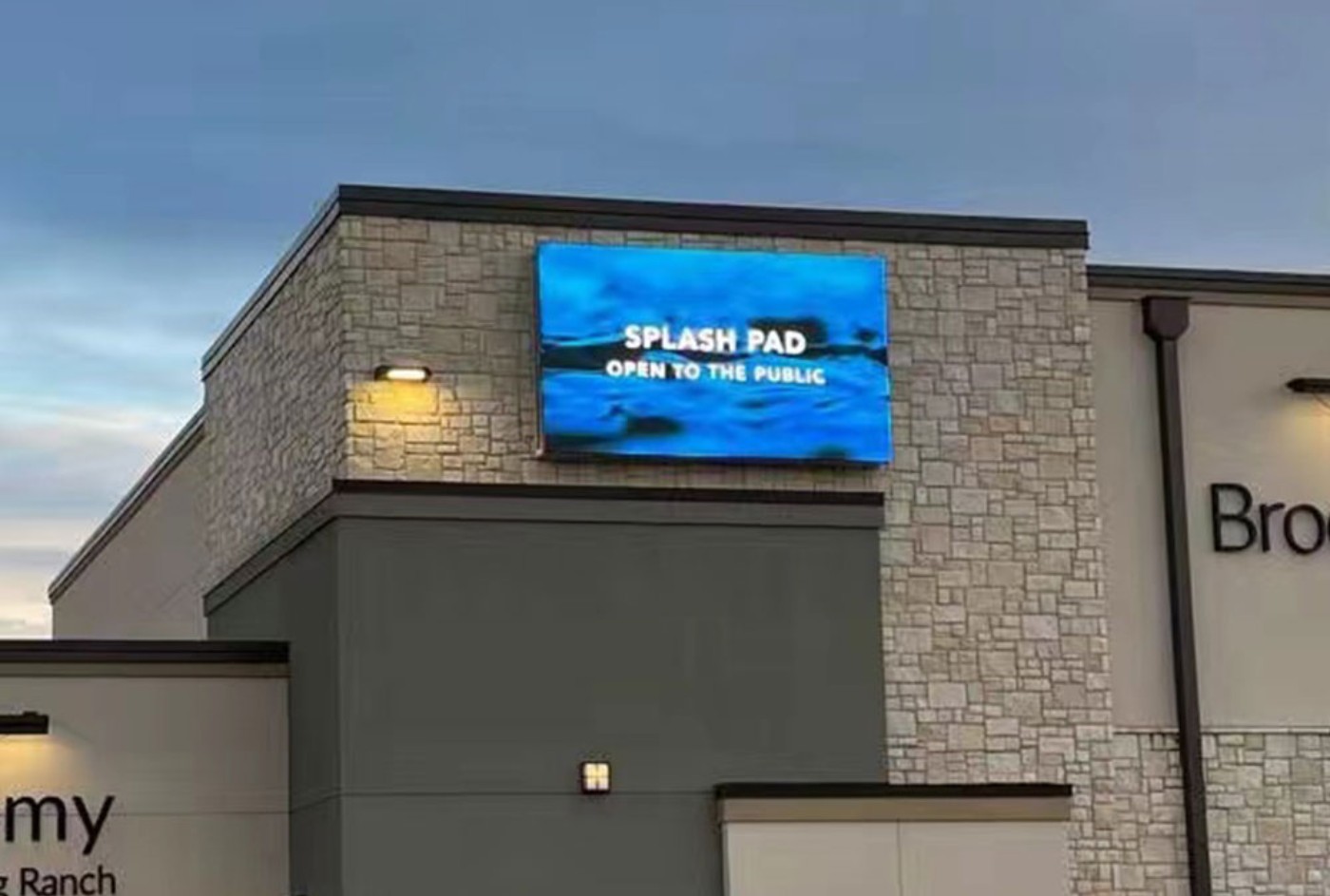

Outdoor Aluminum Profile Advertising LED Screen
Product Feature
Hongwei self-developed ultra-high-definition led display solution designed for the fine-pitch LED display market, ideal for high-quality display applications in security monitoring, command dispatch, video conferencing, and broadcasting control systems.
1. Naked Eye 3D technology (customizable)
This product can achieve automatic stereoscopic display, creating realistic 3D visual effects visible to the naked eye.
2. Outdoor optimized aluminum profile
Adopts lightweight and sturdy aluminum cabinet design (IP67 protection level), and the integrated cooling system ensures stable performance (-30°C to 50°C)
3. Energy-saving performance
Adopts high-efficiency LED drivers, which can effectively reduce power consumption compared with traditional screens. Automatic brightness adjustment (6500-10000 nits) can be adjusted according to ambient light conditions.
4. Professional-grade visual effects
This outdoor energy-saving aluminum profile electronic screen realizes seamless close-up display viewing, and the 3840Hz refresh rate can eliminate flicker in camera recordings, bringing you cinema-level contrast and color depth.
Product Advantages

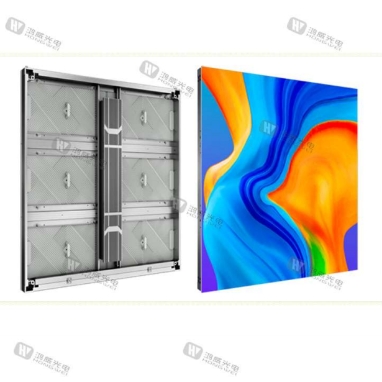

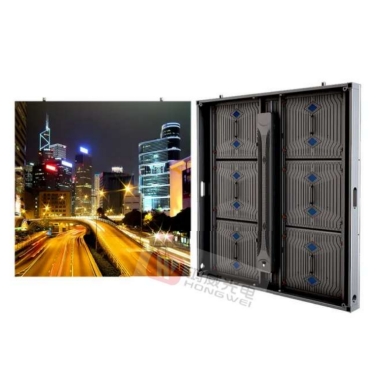

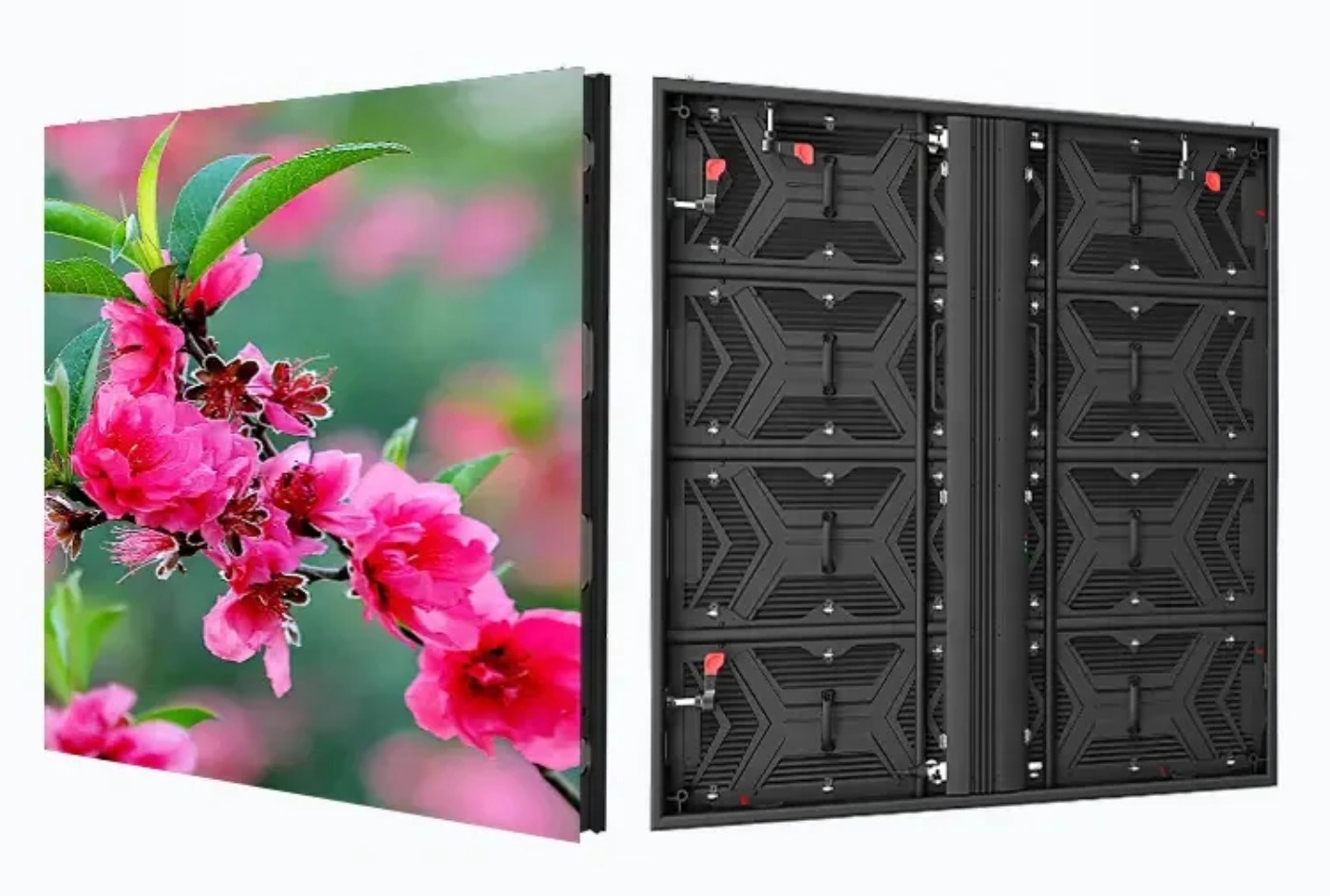

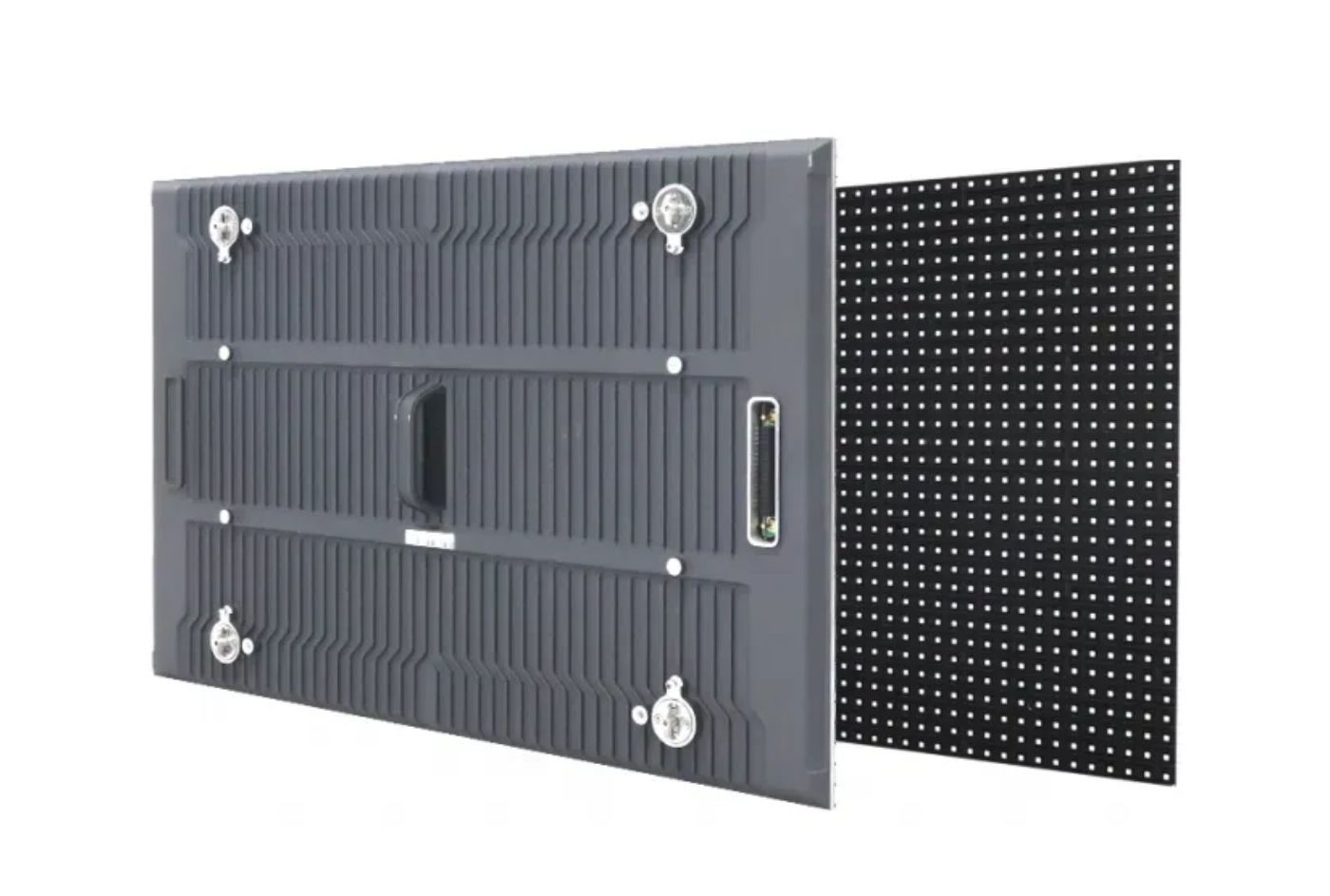

1. Premium Aluminum Cabinet Design:
Features a sleek, standardized design with precision engineering;
Enhanced processing technology ensures rapid installation and exceptional display stability;
Provides convenient and secure maintenance access.
2. Ultra HD Visual Experience:
Delivers high-resolution, stable image quality with zero distortion;
Crystal-clear detail reproduction without smearing or flickering.

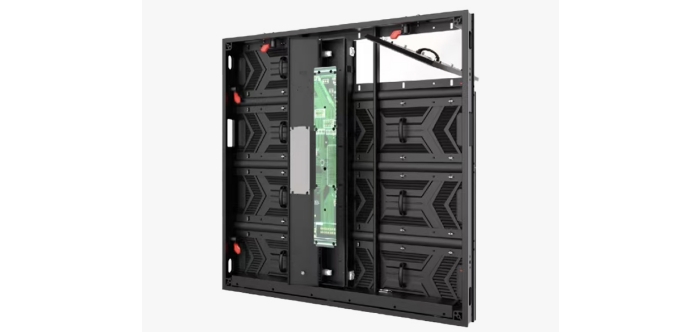

3. Front Rear Dual-Access Maintenance:
Enables fast installation and effortless maintenance from both sides;
Reduces downtime and labor costs for truly worry-free operation.

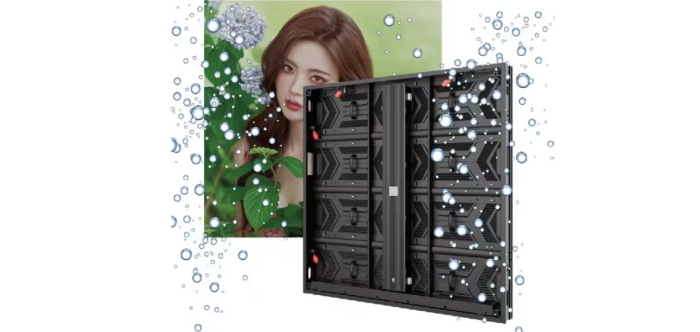

4. Superior Weatherproof Protection:
IP67+ rated front/rear protection against harsh elements;
Withstands rain, wind, and dust infiltration;
Reliable performance in demanding outdoor environments.
Product Specification
P8 Aluminum Profile Electronic LED Screen
| Pixel pitch | 8mm |
| Led type | SMD2727 |
| Usage | Outdoor |
| Protection class | IP67 |
| Brightness | 6500-10000nits |
| Led panel material | Aluminum cabinet |
| Led panel size | 960 x 960mm |
| Pixel density | 15625 dot/m2 |
| Weight | 26 kgs/sqm |
| Power supply | 110/220v-50/60Hz |
P10 Aluminum Profile Electronic LED Screen
| Pixel pitch | 10mm |
| Led type | SMD2727 |
| Usage | Outdoor |
| Protection class | IP67 |
| Brightness | 6500-10000nits |
| Led panel material | Aluminum cabinet |
| Led panel size | 960 x 960mm |
| Pixel density | 10000 dot/m2 |
| Weight | 26 kgs/sqm |
| Power supply | 110/220v-50/60Hz |
Technical Specification
| Led lifetime | 100000 hours |
| Viewing angle | 140 ° / 140 °. Extended angle that improves viewing of images from the side |
| Working temperature and humidity | -30°C / 50°C 10%～95% |
| Refresh rate | 3840Hz |
| Control system | Novasater/Colorlight/Linsn |
| Video signal input | HDMI, DVI, VGA… |
| Grayscale | 14-16 bit |
| Avg power consumption | 320 / m2 |
| Brightness control | Programmable |
- PROGRAMMABLE ON AND OFF
- DURABLE FOR FIXED INSTALLATION
- SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...
Product Application

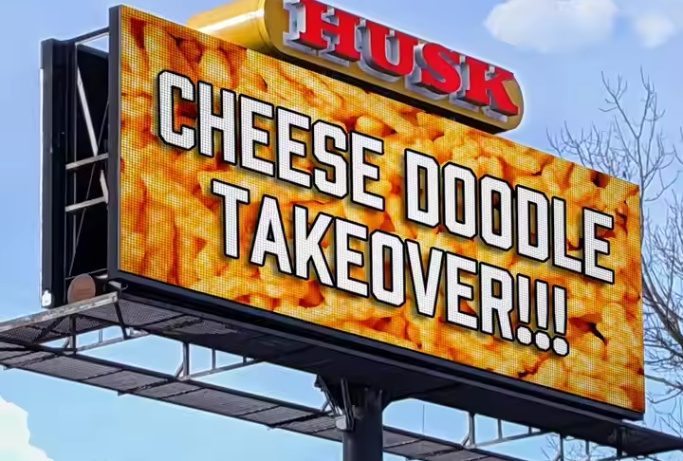

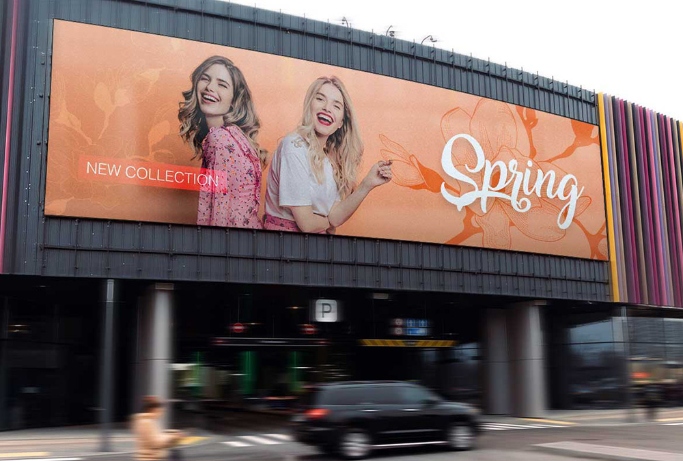

Outdoor Energy-saving Electronic LED Screen

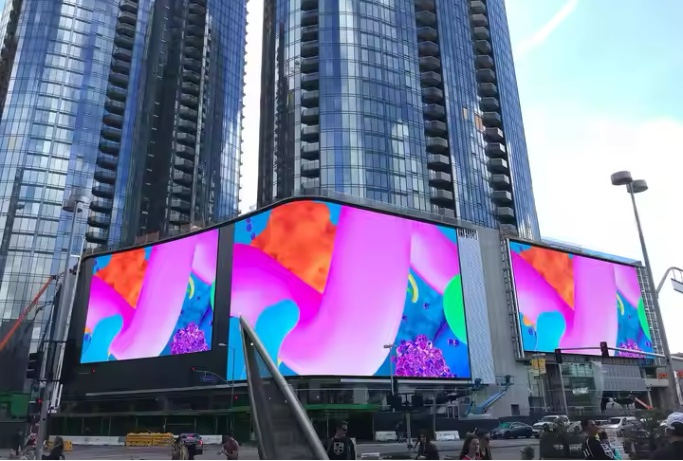

Outdoor Front Back Maintenance LED Display

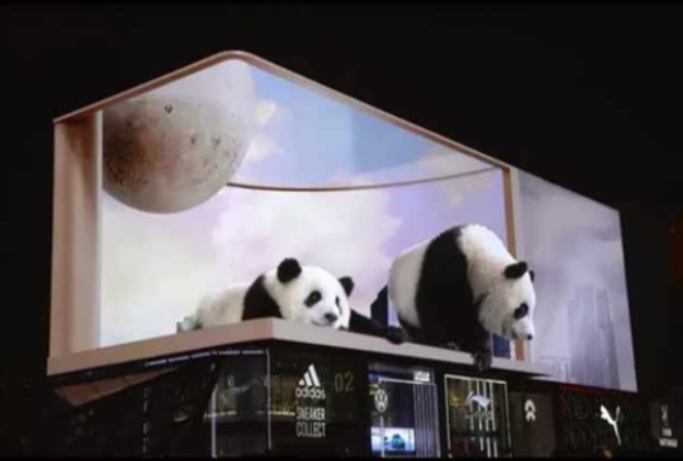

3D Naked Eye Outdoor LED Screen
